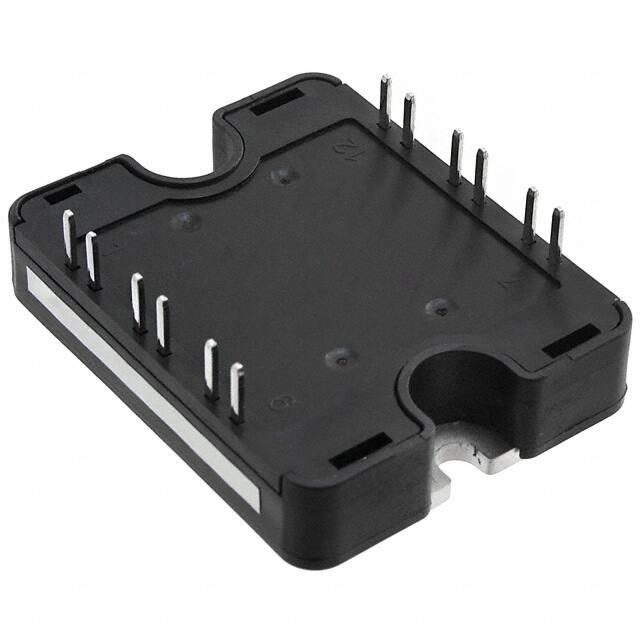

Microsemi Corporation APTGF25H120T1G

APTGF25H120T1G Microsemi Corporation
Microsemi Corporation

Product Information

Input Capacitance (Cies) @ Vce:
1.65nF @ 25V
Current - Collector (Ic) (Max):
40A
Detailed Description:
IGBT Module NPT Full Bridge Inverter 1200V 40A 208W Chassis Mount SP1
Configuration:
Full Bridge Inverter
Mounting Type:
Chassis Mount
Current - Collector Cutoff (Max):
250µA
Vce(on) (Max) @ Vge, Ic:
3.7V @ 15V, 25A
Supplier Device Package:
SP1
Voltage - Collector Emitter Breakdown (Max):
1200V
Power - Max:
208W
Package / Case:
SP1
Input:
Standard
IGBT Type:
NPT
NTC Thermistor:
Yes
Manufacturer:
Microsemi Corporation
Checking for live stock

This is manufactured by Microsemi Corporation. The manufacturer part number is APTGF25H120T1G. It holds 1.65nf @ 25v of input capacitance. The maximum collector current includes 40a. It features igbt module npt full bridge inverter 1200v 40a 208w chassis mount sp1. The product is available in full bridge inverter configuration. The product is available in chassis mount configuration. In addition, 250µa is the maximum current at collector cutoff. Features 3.7v @ 15v, 25a. sp1 is the supplier device package value. The maximum collector emitter breakdown voltage of the product is 1200v. The maximum power of the product is 208w. Moreover, the product comes in sp1. Its input values include standard. Features an IGBT npt type. NTC Thermistor - yes. The microsemi corporation's product offers user-desired applications.

pdf icon
APTGF25H120T1G(Datasheets)
pdf icon
Power Module Disc 23/Mar/2016(PCN Part Status Change)
