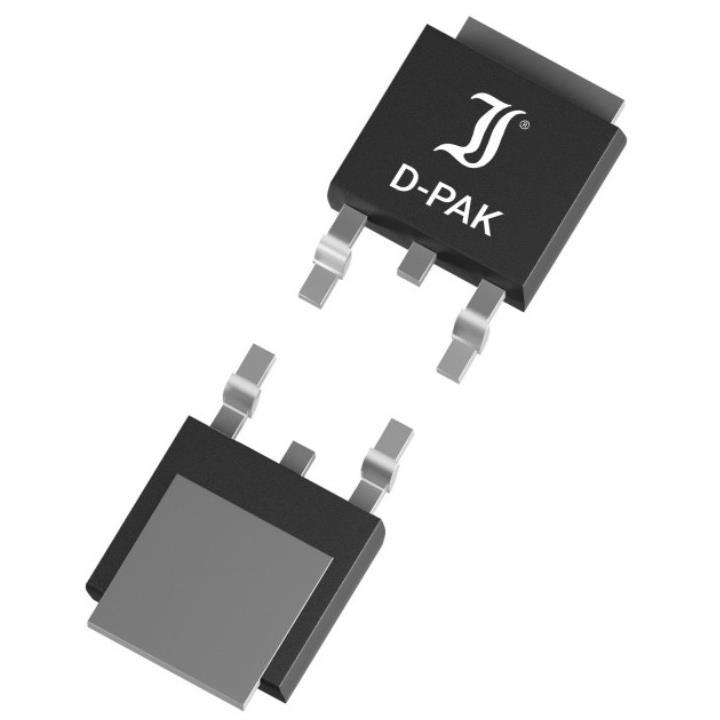

Diotec Semiconductor DI050N06D1

DI050N06D1 Diotec Semiconductor
Diotec Semiconductor

Product Information

FET Feature:
-
HTSUS:
8541.29.0095
RoHS Status:
Not applicable
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-252-3, DPAK (2 Leads + Tab), SC-63
Rds On (Max) @ Id, Vgs:
11mOhm @ 10A, 10V
Gate Charge (Qg) (Max) @ Vgs:
14 nC @ 10 V
Vgs(th) (Max) @ Id:
2.5V @ 250µA
REACH Status:
Vendor Undefined
edacadModel:
DI050N06D1 Models
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
edacadModelUrl:
/en/models/16640539
Drain to Source Voltage (Vdss):
65 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
3 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
825 pF @ 30 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
TO-252 (DPAK)
Packaging:
Tape & Reel (TR)
Current - Continuous Drain (Id) @ 25°C:
50A (Tc)
Power Dissipation (Max):
42W (Tc)
Technology:
MOSFET (Metal Oxide)
ECCN:
EAR99
Checking for live stock

This is manufactured by Diotec Semiconductor. The manufacturer part number is DI050N06D1. It is assigned with possible HTSUS value of 8541.29.0095. The product is not applicable. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-252-3, dpak (2 leads + tab), sc-63. It has a maximum Rds On and voltage of 11mohm @ 10a, 10v. The maximum gate charge and given voltages include 14 nc @ 10 v. The typical Vgs (th) (max) of the product is 2.5v @ 250µa. In addition, it is vendor undefined. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. The product has a 65 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is not applicable. It has a long 3 weeks standard lead time. The product's input capacitance at maximum includes 825 pf @ 30 v. The product is available in surface mount configuration. to-252 (dpak) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The continuous current drain at 25°C is 50a (tc). The product carries maximum power dissipation 42w (tc). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.
