onsemi NTD25P03L1G

NTD25P03L1G onsemi
onsemi

Product Information

FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
2V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)

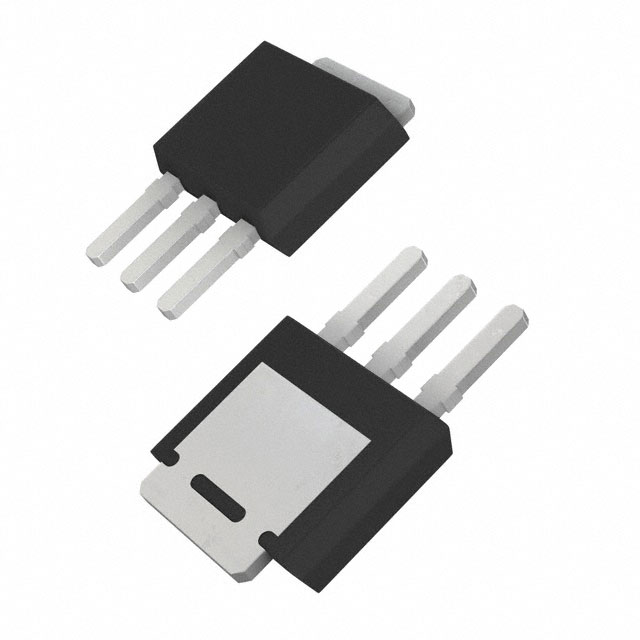

Package / Case:
TO-251-3 Short Leads, IPak, TO-251AA
Rds On (Max) @ Id, Vgs:
80mOhm @ 25A, 5V
edacadModel:
NTD25P03L1G Models
Gate Charge (Qg) (Max) @ Vgs:
20 nC @ 5 V
REACH Status:
REACH Unaffected
FET Type:
P-Channel
Drive Voltage (Max Rds On, Min Rds On):
4V, 5V
edacadModelUrl:
/en/models/921553
Package:
Tube
Drain to Source Voltage (Vdss):
30 V
Vgs (Max):
±15V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
75W (Tj)
Input Capacitance (Ciss) (Max) @ Vds:
1260 pF @ 25 V
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
I-PAK
Current - Continuous Drain (Id) @ 25°C:
25A (Ta)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
NTD25
ECCN:
EAR99
Checking for live stock

This is manufactured by onsemi. The manufacturer part number is NTD25P03L1G. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 2v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-251-3 short leads, ipak, to-251aa. It has a maximum Rds On and voltage of 80mohm @ 25a, 5v. The maximum gate charge and given voltages include 20 nc @ 5 v. In addition, it is reach unaffected. It carries FET type p-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4v, 5v. It is shipped in tube package . The product has a 30 v drain to source voltage. The maximum Vgs rate is ±15v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 75w (tj). The product's input capacitance at maximum includes 1260 pf @ 25 v. The product is available in through hole configuration. i-pak is the supplier device package value. The continuous current drain at 25°C is 25a (ta). This product use mosfet (metal oxide) technology. Moreover, it corresponds to ntd25, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Multiple Devices 21/Jan/2010(PCN Obsolescence/ EOL)
pdf icon
NTD25P03L(Datasheets)
pdf icon
onsemi RoHS(Environmental Information)
pdf icon
onsemi REACH(Environmental Information)
