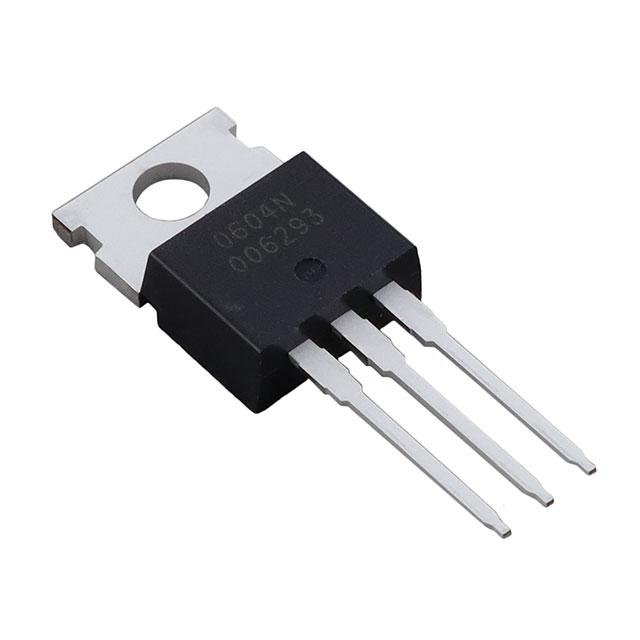

Renesas Electronics America Inc N0604N-S19-AY

N0604N-S19-AY Renesas Electronics America Inc
Renesas Electronics America Inc

Product Information

FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
-
Operating Temperature:
150°C (TJ)
Package / Case:
TO-220-3 Isolated Tab
Rds On (Max) @ Id, Vgs:
6.5mOhm @ 41A, 10V
Gate Charge (Qg) (Max) @ Vgs:
75 nC @ 10 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Affected
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Package:
Tube
Drain to Source Voltage (Vdss):
60 V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
1.5W (Ta), 156W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
4150 pF @ 25 V
standardLeadTime:
18 Weeks
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TO-220 Isolated Tab
Current - Continuous Drain (Id) @ 25°C:
82A (Ta)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
N0604N-S19
ECCN:
EAR99
Checking for live stock

This is manufactured by Renesas Electronics America Inc. The manufacturer part number is N0604N-S19-AY. It is assigned with possible HTSUS value of 8541.29.0095. The product has 150°c (tj) operating temperature range. Moreover, the product comes in to-220-3 isolated tab. It has a maximum Rds On and voltage of 6.5mohm @ 41a, 10v. The maximum gate charge and given voltages include 75 nc @ 10 v. The product is rohs3 compliant. In addition, it is reach affected. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 10v. It is shipped in tube package . The product has a 60 v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 1.5w (ta), 156w (tc). The product's input capacitance at maximum includes 4150 pf @ 25 v. It has a long 18 weeks standard lead time. The product is available in through hole configuration. to-220 isolated tab is the supplier device package value. The continuous current drain at 25°C is 82a (ta). This product use mosfet (metal oxide) technology. Moreover, it corresponds to n0604n-s19, a base product number of the product. The product is designated with the ear99 code number.
