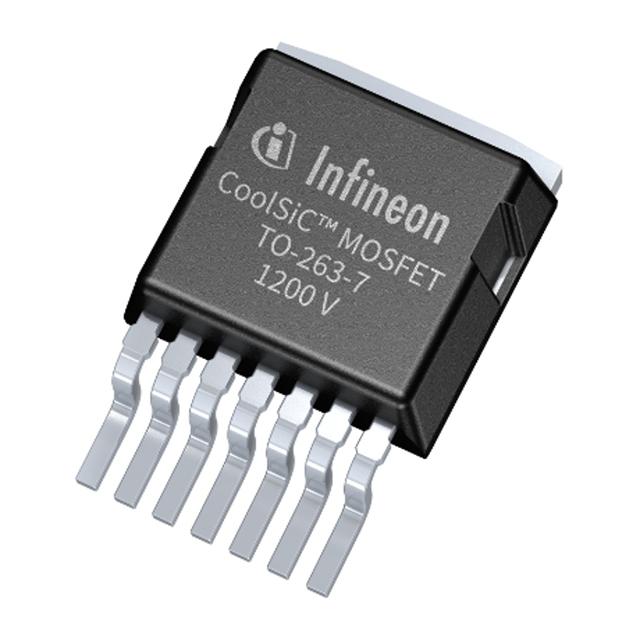

Infineon Technologies IMBG120R350M1HXTMA1

IMBG120R350M1HXTMA1 Infineon Technologies
Infineon Technologies

Product Information

FET Feature:
Standard
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
5.7V @ 1mA
Operating Temperature:
-55°C ~ 175°C (TJ)
Package / Case:
TO-263-8, D2PAK (7 Leads + Tab), TO-263CA
Rds On (Max) @ Id, Vgs:
468mOhm @ 2A, 18V
Gate Charge (Qg) (Max) @ Vgs:
5.9 nC @ 18 V
RoHS Status:
ROHS3 Compliant
REACH Status:
REACH Unaffected
edacadModel:
IMBG120R350M1HXTMA1 Models
FET Type:
N-Channel
edacadModelUrl:
/en/models/13530812
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
1200 V
Vgs (Max):
+18V, -15V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
65W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
196 pF @ 800 V
standardLeadTime:
28 Weeks
Mounting Type:
Surface Mount
Series:
CoolSiC™
Supplier Device Package:
PG-TO263-7-12
Current - Continuous Drain (Id) @ 25°C:
4.7A (Tc)
Technology:
SiCFET (Silicon Carbide)
Base Product Number:
IMBG120
ECCN:
EAR99
Checking for live stock

This is manufactured by Infineon Technologies. The manufacturer part number is IMBG120R350M1HXTMA1. The FET features of the product include standard. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 5.7v @ 1ma. The product has -55°c ~ 175°c (tj) operating temperature range. Moreover, the product comes in to-263-8, d2pak (7 leads + tab), to-263ca. It has a maximum Rds On and voltage of 468mohm @ 2a, 18v. The maximum gate charge and given voltages include 5.9 nc @ 18 v. The product is rohs3 compliant. In addition, it is reach unaffected. It carries FET type n-channel. It is shipped in tape & reel (tr) package . The product has a 1200 v drain to source voltage. The maximum Vgs rate is +18v, -15v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 65w (tc). The product's input capacitance at maximum includes 196 pf @ 800 v. It has a long 28 weeks standard lead time. The product is available in surface mount configuration. The product coolsic™, is a highly preferred choice for users. pg-to263-7-12 is the supplier device package value. The continuous current drain at 25°C is 4.7a (tc). This product use sicfet (silicon carbide) technology. Moreover, it corresponds to imbg120, a base product number of the product. The product is designated with the ear99 code number.
