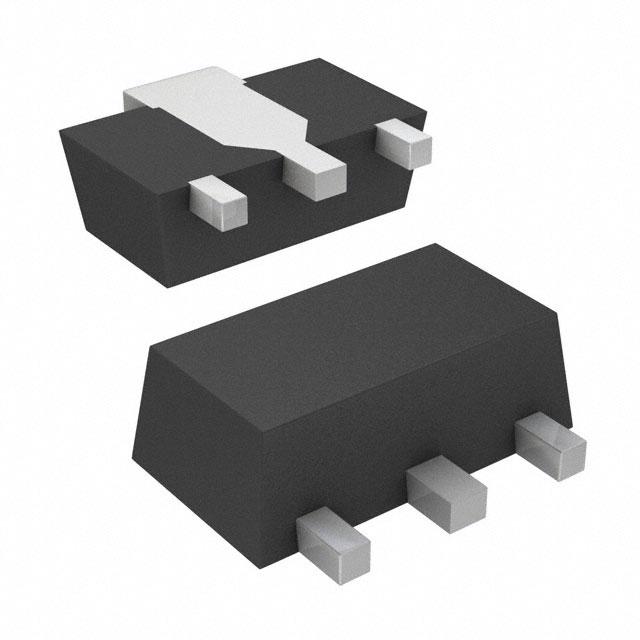

Central Semiconductor Corp CXDM4060P TR PBFREE

CXDM4060P-TR-PBFREE Central Semiconductor Corp CXDM4060P TR PBFREE
Central Semiconductor Corp

Product Information

FET Feature:
-
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-243AA
Rds On (Max) @ Id, Vgs:
65mOhm @ 6A, 10V
title:
CXDM4060P TR PBFREE
Vgs(th) (Max) @ Id:
3V @ 250µA
REACH Status:
REACH Unaffected
FET Type:
P-Channel
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
Drain to Source Voltage (Vdss):
40 V
Vgs (Max):
20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
1.2W (Ta)
standardLeadTime:
99 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
750 pF @ 25 V
Mounting Type:
Surface Mount
Series:
-
Gate Charge (Qg) (Max) @ Vgs:
6.5 nC @ 4.5 V
Supplier Device Package:
SOT-89
Packaging:
Tape & Reel (TR)
Current - Continuous Drain (Id) @ 25°C:
6A (Ta)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
CXDM4060
ECCN:
EAR99
Checking for live stock

This is manufactured by Central Semiconductor Corp. The manufacturer part number is CXDM4060P TR PBFREE. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-243aa. It has a maximum Rds On and voltage of 65mohm @ 6a, 10v. The typical Vgs (th) (max) of the product is 3v @ 250µa. In addition, it is reach unaffected. It carries FET type p-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. The product has a 40 v drain to source voltage. The maximum Vgs rate is 20v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 1.2w (ta). It has a long 99 weeks standard lead time. The product's input capacitance at maximum includes 750 pf @ 25 v. The product is available in surface mount configuration. The maximum gate charge and given voltages include 6.5 nc @ 4.5 v. sot-89 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The continuous current drain at 25°C is 6a (ta). This product use mosfet (metal oxide) technology. Moreover, it corresponds to cxdm4060, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
CXDM4060P(Datasheets)
pdf icon
RoHS Cert(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search CXDM4060P TR PBFREE on website for other similar products.
We accept all major payment methods for all products including ET18348630. Please check your shopping cart at the time of order.
You can order Central Semiconductor Corp brand products with CXDM4060P TR PBFREE directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - FETs, MOSFETs - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Central Semiconductor Corp CXDM4060P TR PBFREE. You can also check on our website or by contacting our customer support team for further order details on Central Semiconductor Corp CXDM4060P TR PBFREE.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET18348630 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Central Semiconductor Corp" products on our website by using Enrgtech's Unique Manufacturing Part Number ET18348630.
Yes. We ship CXDM4060P TR PBFREE Internationally to many countries around the world.
