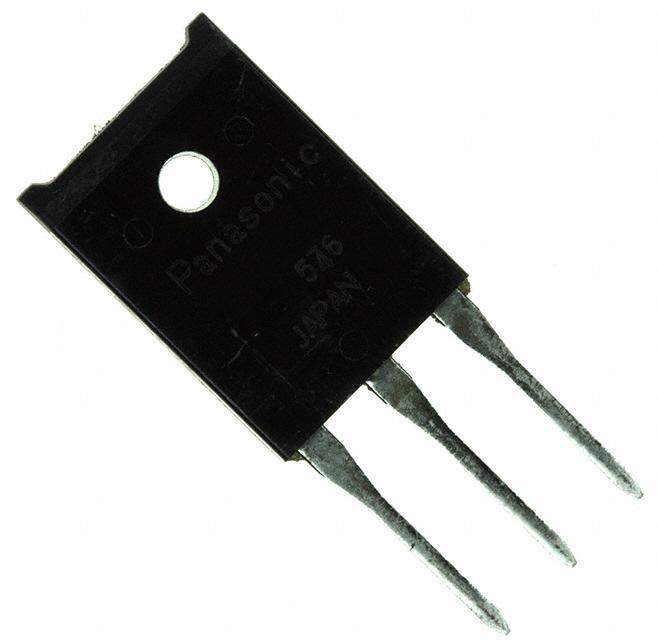

Panasonic Electronic Components 2SK3318

2SK3318 Panasonic Electronic Components
Panasonic Electronic Components

Product Information

FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
4V @ 1mA
Operating Temperature:
150°C (TJ)
Package / Case:
TOP-3F
Rds On (Max) @ Id, Vgs:
460mOhm @ 7.5A, 10V
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
10V
Package:
Bulk
Drain to Source Voltage (Vdss):
600 V
Vgs (Max):
±30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Power Dissipation (Max):
3W (Ta), 100W (Tc)
Input Capacitance (Ciss) (Max) @ Vds:
3500 pF @ 20 V
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TOP-3F-A1
Current - Continuous Drain (Id) @ 25°C:
15A (Tc)
Technology:
MOSFET (Metal Oxide)
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is 2SK3318. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 4v @ 1ma. The product has 150°c (tj) operating temperature range. Moreover, the product comes in top-3f. It has a maximum Rds On and voltage of 460mohm @ 7.5a, 10v. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 10v. It is shipped in bulk package . The product has a 600 v drain to source voltage. The maximum Vgs rate is ±30v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 3w (ta), 100w (tc). The product's input capacitance at maximum includes 3500 pf @ 20 v. The product is available in through hole configuration. top-3f-a1 is the supplier device package value. The continuous current drain at 25°C is 15a (tc). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.

pdf icon
2SK3318(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 2SK3318 on website for other similar products.
We accept all major payment methods for all products including ET16409729. Please check your shopping cart at the time of order.
You can order Panasonic Electronic Components brand products with 2SK3318 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - FETs, MOSFETs - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electronic Components 2SK3318. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electronic Components 2SK3318.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16409729 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electronic Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16409729.
Yes. We ship 2SK3318 Internationally to many countries around the world.
