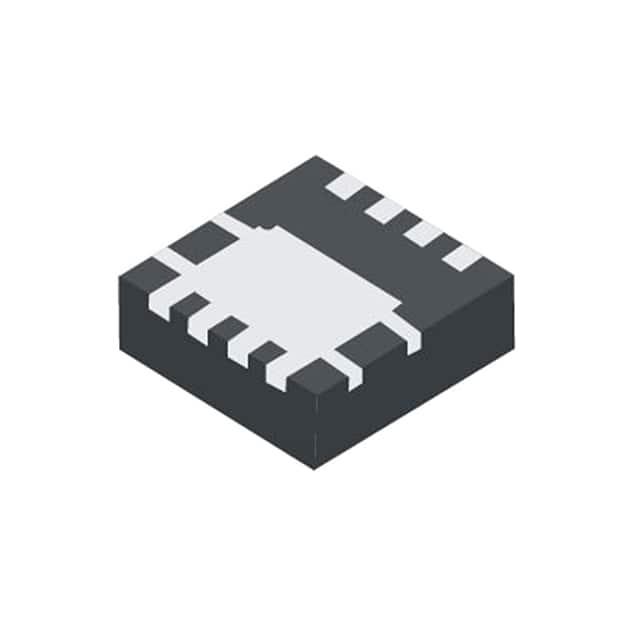

Diodes Incorporated DMN3009SFGQ-7

DMN3009SFGQ-7 Diodes Incorporated
Diodes Incorporated

Product Information

Manufacturer Standard Lead Time:
36 Weeks
Detailed Description:
N-Channel 30V 16A (Ta), 45A (Tc) 900mW (Ta) Surface Mount PowerDI3333-8
Vgs(th) (Max) @ Id:
2.5V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
8-PowerVDFN
Base Part Number:
DMN3009
Gate Charge (Qg) (Max) @ Vgs:
42nC @ 10V
Rds On (Max) @ Id, Vgs:
5.5mOhm @ 20A, 10V
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
Manufacturer:
Diodes Incorporated
Drain to Source Voltage (Vdss):
30V
Vgs (Max):
±20V
Input Capacitance (Ciss) (Max) @ Vds:
2nF @ 15V
Mounting Type:
Surface Mount
Series:
Automotive, AEC-Q101
Supplier Device Package:
PowerDI3333-8
Packaging:
Cut Tape (CT)
Current - Continuous Drain (Id) @ 25°C:
16A (Ta), 45A (Tc)
Customer Reference:
Power Dissipation (Max):
900mW (Ta)
Technology:
MOSFET (Metal Oxide)
Checking for live stock

This is manufactured by Diodes Incorporated. The manufacturer part number is DMN3009SFGQ-7. It has typical 36 weeks of manufacturer standard lead time. It features n-channel 30v 16a (ta), 45a (tc) 900mw (ta) surface mount powerdi3333-8. The typical Vgs (th) (max) of the product is 2.5v @ 250µa. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 8-powervdfn. Base Part Number: dmn3009. The maximum gate charge and given voltages include 42nc @ 10v. It has a maximum Rds On and voltage of 5.5mohm @ 20a, 10v. It carries FET type n-channel. The drive voltage (maximum and minimum Rds On) of the product includes 4.5v, 10v. The diodes incorporated's product offers user-desired applications. The product has a 30v drain to source voltage. The maximum Vgs rate is ±20v. The product's input capacitance at maximum includes 2nf @ 15v. The product is available in surface mount configuration. The product automotive, aec-q101, is a highly preferred choice for users. powerdi3333-8 is the supplier device package value. In addition, cut tape (ct) is the available packaging type of the product. The continuous current drain at 25°C is 16a (ta), 45a (tc). The product carries maximum power dissipation 900mw (ta). This product use mosfet (metal oxide) technology.

pdf icon
DMN3009SFGQ(Datasheets)
pdf icon
Diodes RoHS 3 Cert(Environmental Information)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search DMN3009SFGQ-7 on website for other similar products.
We accept all major payment methods for all products including ET15914448. Please check your shopping cart at the time of order.
You can order Diodes Incorporated brand products with DMN3009SFGQ-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - FETs, MOSFETs - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Incorporated DMN3009SFGQ-7. You can also check on our website or by contacting our customer support team for further order details on Diodes Incorporated DMN3009SFGQ-7.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET15914448 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Diodes Incorporated" products on our website by using Enrgtech's Unique Manufacturing Part Number ET15914448.
Yes. We ship DMN3009SFGQ-7 Internationally to many countries around the world.
