Maximum Continuous Drain Current:
63 A
Transistor Material:
Si
Width:
3.3mm
Transistor Configuration:
Single
Maximum Drain Source Voltage:
30 V
Package Type:
MLP
Number of Elements per Chip:
1
Minimum Gate Threshold Voltage:
1.2V
Maximum Operating Temperature:
+150 °C
Typical Gate Charge @ Vgs:
28 nC @ 10 V
Channel Type:
N
Length:
3.3mm
Pin Count:
8
Channel Mode:
Enhancement
Mounting Type:
Surface Mount
Maximum Power Dissipation:
31 W
Series:
PowerTrench
Maximum Gate Source Voltage:
-20 V, +20 V
Height:
0.75mm
Minimum Operating Temperature:
-55 °C
Maximum Drain Source Resistance:
7.2 mΩ
Detailed Description:

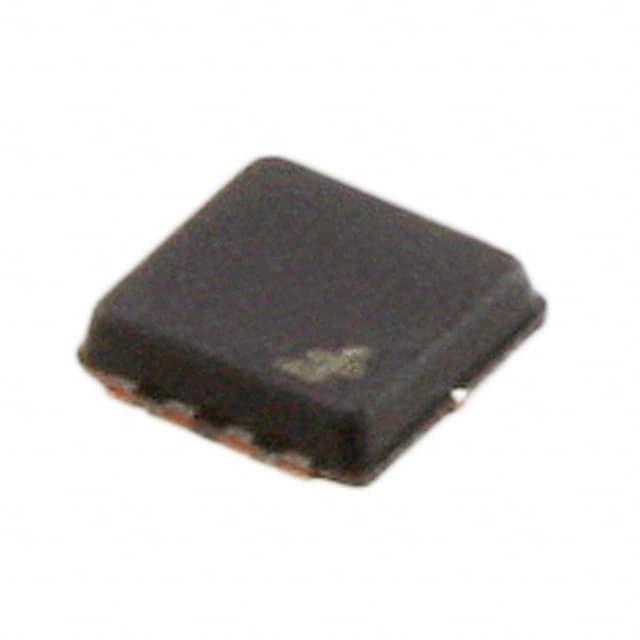

N-Channel 30V 17.5A (Ta), 19.5A (Tc) 2.3W (Ta), 31W (Tc) Surface Mount 8-MLP (3.3x3.3)
Vgs(th) (Max) @ Id:
3V @ 250µA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
8-PowerWDFN
Base Part Number:
FDMC76
Gate Charge (Qg) (Max) @ Vgs:
39nC @ 10V
Rds On (Max) @ Id, Vgs:
5.3mOhm @ 17.5A, 10V
FET Type:
N-Channel
Drive Voltage (Max Rds On, Min Rds On):
4.5V, 10V
Manufacturer:
ON Semiconductor
Drain to Source Voltage (Vdss):
30V
Vgs (Max):
±20V
Input Capacitance (Ciss) (Max) @ Vds:
2410pF @ 15V
Mounting Type:
Surface Mount
Series:
PowerTrench®
Supplier Device Package:
8-MLP (3.3x3.3)
Packaging:
Cut Tape (CT)
Current - Continuous Drain (Id) @ 25°C:
17.5A (Ta), 19.5A (Tc)
Customer Reference:
Power Dissipation (Max):
2.3W (Ta), 31W (Tc)
Technology:
MOSFET (Metal Oxide)
