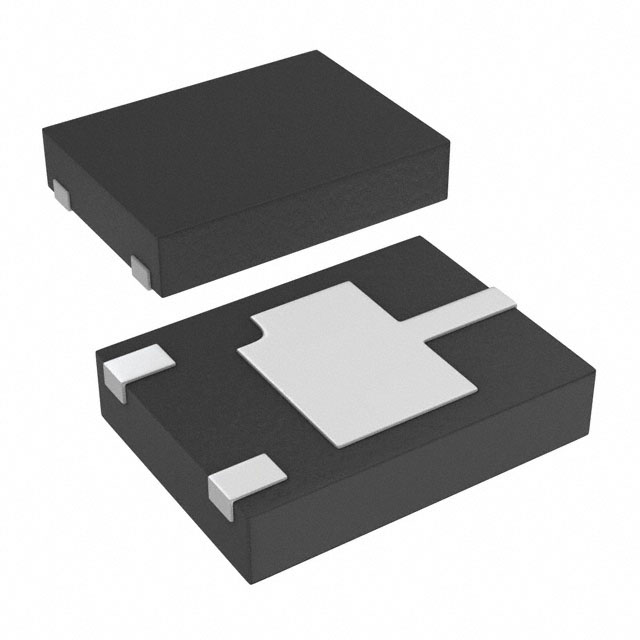

Diodes Incorporated DMP2069UFY4-7

Enrgtech Part No: ET11414676
|
Manufacturer Part No:
DMP2069UFY4-7
|
Manufacturer: Diodes Incorporated

Product Information

FET Feature:

HTSUS:

8541.21.0095

RoHS Status:

ROHS3 Compliant

Operating Temperature:

-55°C ~ 150°C (TJ)

Package / Case:

3-XFDFN

Rds On (Max) @ Id, Vgs:

54mOhm @ 2.5A, 4.5V

title:

DMP2069UFY4-7

Vgs(th) (Max) @ Id:

1V @ 250µA

REACH Status:

REACH Unaffected

FET Type:

P-Channel

Drive Voltage (Max Rds On, Min Rds On):

1.8V, 4.5V

Drain to Source Voltage (Vdss):

20 V

Checking for live stock

This is manufactured by Diodes Incorporated. The manufacturer part number is DMP2069UFY4-7. It is assigned with possible HTSUS value of 8541.21.0095. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 3-xfdfn. It has a maximum Rds On and voltage of 54mohm @ 2.5a, 4.5v. The typical Vgs (th) (max) of the product is 1v @ 250µa. In addition, it is reach unaffected. It carries FET type p-channel. The drive voltage (maximum and minimum Rds On) of the product includes 1.8v, 4.5v. The product has a 20 v drain to source voltage. The maximum Vgs rate is ±8v. Its typical moisture sensitivity level is 1 (unlimited). The product carries maximum power dissipation 530mw (ta). It has a long 8 weeks standard lead time. The product's input capacitance at maximum includes 214 pf @ 10 v. The product is available in surface mount configuration. The maximum gate charge and given voltages include 9.1 nc @ 4.5 v. dfn2015h4-3 is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The continuous current drain at 25°C is 2.5a (ta). This product use mosfet (metal oxide) technology. Moreover, it corresponds to dmp2069, a base product number of the product. The product is designated with the ear99 code number.

DMP2069UFY4(Datasheets)

Bond Wire 11/Nov/2011(PCN Design/Specification)

Diodes Environmental Compliance Cert(Environmental Information)
