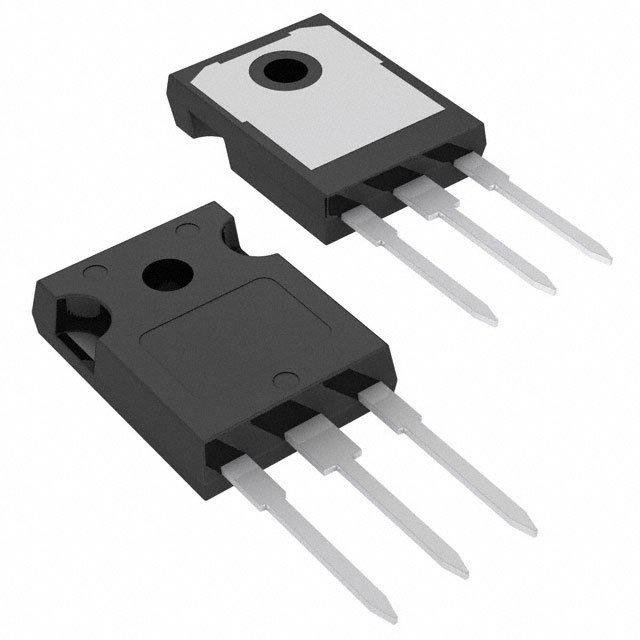

Fairchild/ON Semiconductor FCH190N65F_F155

FCH190N65F_F155 Fairchild/ON Semiconductor
Fairchild/ON Semiconductor

Product Information

Manufacturer Standard Lead Time:
6 Weeks
Vgs(th) (Max) @ Id:
5V @ 2mA
Operating Temperature:
-55°C ~ 150°C (TJ)
Package / Case:
TO-247-3
Gate Charge (Qg) (Max) @ Vgs:
78nC @ 10V
Rds On (Max) @ Id, Vgs:
190 mOhm @ 10A, 10V
FET Type:
N-Channel
Standard Package:
30
Manufacturer:
Fairchild/ON Semiconductor
Drain to Source Voltage (Vdss):
650V
Vgs (Max):
±20V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Input Capacitance (Ciss) (Max) @ Vds:
3225pF @ 100V
Mounting Type:
Through Hole
Series:
FRFET®, SuperFET® II
Supplier Device Package:
TO-247 Long Leads
Drive Voltage (Max Rds On, Min Rds On):
10V
Packaging:
Tube
Current - Continuous Drain (Id) @ 25°C:
20.6A (Tc)
Power Dissipation (Max):
208W (Tc)
Technology:
MOSFET (Metal Oxide)
RoHs Compliant
Checking for live stock

This is manufactured by Fairchild/ON Semiconductor. The manufacturer part number is FCH190N65F_F155. It has typical 6 weeks of manufacturer standard lead time. The typical Vgs (th) (max) of the product is 5v @ 2ma. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in to-247-3. The maximum gate charge and given voltages include 78nc @ 10v. It has a maximum Rds On and voltage of 190 mohm @ 10a, 10v. It carries FET type n-channel. It is available in the standard package of 30. The fairchild/on semiconductor's product offers user-desired applications. The product has a 650v drain to source voltage. The maximum Vgs rate is ±20v. Its typical moisture sensitivity level is 1 (unlimited). The product's input capacitance at maximum includes 3225pf @ 100v. The product is available in through hole configuration. The product frfet®, superfet® ii, is a highly preferred choice for users. to-247 long leads is the supplier device package value. The minimum and maximum Rds On drive voltage includes [Drive Voltage (Max Rds On, Min Rds On)]. In addition, tube is the available packaging type of the product. The continuous current drain at 25°C is 20.6a (tc). The product carries maximum power dissipation 208w (tc). This product use mosfet (metal oxide) technology.

pdf icon
Assembly Site Transfer 06/Apr/2015(PCN Assembly/Origin)
pdf icon
FCH190N65F_F155(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search FCH190N65F_F155 on website for other similar products.
We accept all major payment methods for all products including ET11402578. Please check your shopping cart at the time of order.
You can order Fairchild/ON Semiconductor brand products with FCH190N65F_F155 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - FETs, MOSFETs - Single category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Fairchild/ON Semiconductor FCH190N65F_F155. You can also check on our website or by contacting our customer support team for further order details on Fairchild/ON Semiconductor FCH190N65F_F155.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11402578 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Fairchild/ON Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11402578.
Yes. We ship FCH190N65F_F155 Internationally to many countries around the world.
