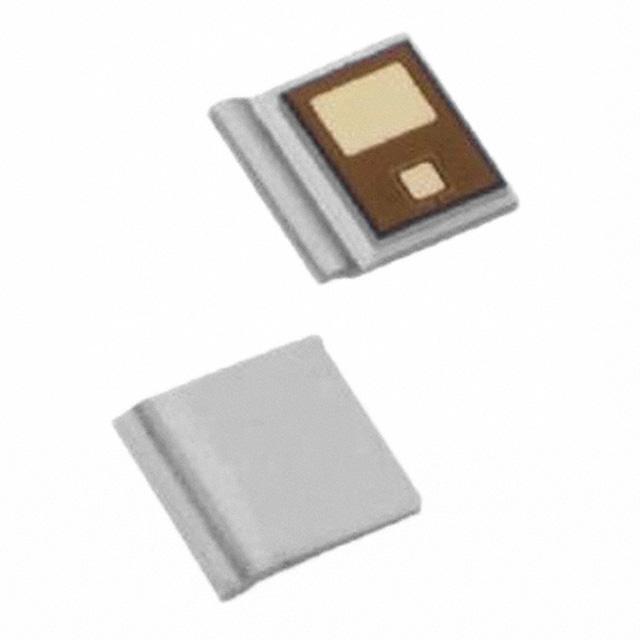

Panasonic Electronic Components FJ3P02100L

FJ3P02100L Panasonic Electronic Components
Panasonic Electronic Components

Product Information

FET Feature:
-
HTSUS:
8541.29.0095
Vgs(th) (Max) @ Id:
1.05V @ 1mA
Operating Temperature:
150°C (TJ)
Package / Case:
3-SMD, Non-Standard
Rds On (Max) @ Id, Vgs:
12.5mOhm @ 3.7A, 4.5V
edacadModel:
FJ3P02100L Models
RoHS Status:
RoHS Compliant
FET Type:
P-Channel
Drive Voltage (Max Rds On, Min Rds On):
2V, 4.5V
edacadModelUrl:
/en/models/3884442
Package:
Tape & Reel (TR)
Drain to Source Voltage (Vdss):
20 V
Vgs (Max):
±8V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Input Capacitance (Ciss) (Max) @ Vds:
3000 pF @ 10 V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
3-PMCP
Current - Continuous Drain (Id) @ 25°C:
4.4A (Ta)
Power Dissipation (Max):
-
Technology:
MOSFET (Metal Oxide)
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is FJ3P02100L. It is assigned with possible HTSUS value of 8541.29.0095. The typical Vgs (th) (max) of the product is 1.05v @ 1ma. The product has 150°c (tj) operating temperature range. Moreover, the product comes in 3-smd, non-standard. It has a maximum Rds On and voltage of 12.5mohm @ 3.7a, 4.5v. The product is rohs compliant. It carries FET type p-channel. The drive voltage (maximum and minimum Rds On) of the product includes 2v, 4.5v. It is shipped in tape & reel (tr) package . The product has a 20 v drain to source voltage. The maximum Vgs rate is ±8v. Its typical moisture sensitivity level is 1 (unlimited). The product's input capacitance at maximum includes 3000 pf @ 10 v. The product is available in surface mount configuration. 3-pmcp is the supplier device package value. The continuous current drain at 25°C is 4.4a (ta). This product use mosfet (metal oxide) technology. The product is designated with the ear99 code number.

pdf icon
Mult Devs - End of Life 15/MAY/2020(PCN Obsolescence/ EOL)
