Diodes Incorporated DMN3012LEG-7

DMN3012LEG-7 Diodes Incorporated
Diodes Incorporated

Product Information

FET Feature:
-
HTSUS:
8541.29.0095
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-55°C ~ 150°C (TJ)

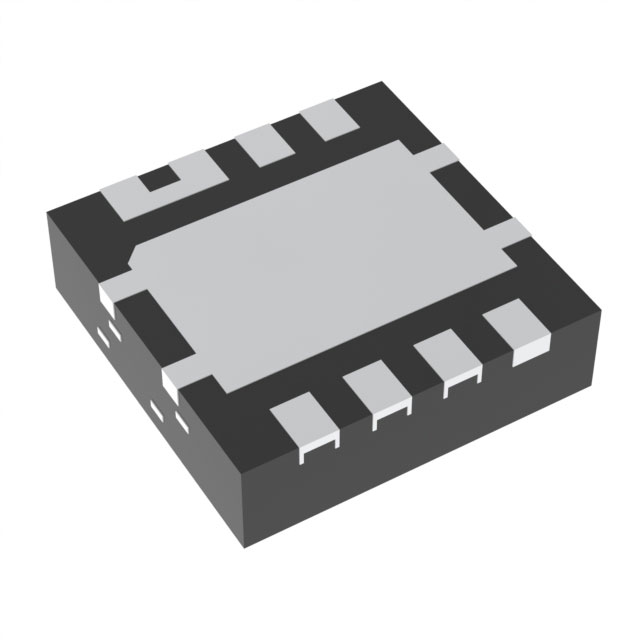

Package / Case:
8-PowerLDFN
Rds On (Max) @ Id, Vgs:
12mOhm @ 15A, 5V, 6mOhm @ 15A, 5V
Gate Charge (Qg) (Max) @ Vgs:
6.1nC @ 4.5V, 12.6nC @ 4.5V
Vgs(th) (Max) @ Id:
2.1V @ 250µA, 1.15V @ 250µA
REACH Status:
REACH Unaffected
Current - Continuous Drain (Id) @ 25°C:
10A (Ta), 20A (Tc)
Configuration:
2 N-Channel (Dual)
Manufacturer:
Diodes Incorporated
Drain to Source Voltage (Vdss):
30V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
standardLeadTime:
24 Weeks
Input Capacitance (Ciss) (Max) @ Vds:
850pF @ 15V, 1480pF @ 15V
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
PowerDI3333-8 (Type D)
Packaging:
Tape & Reel (TR)
Power - Max:
2.2W (Tc)
Technology:
MOSFET (Metal Oxide)
Base Product Number:
DMN3012
ECCN:
EAR99
Checking for live stock

This is manufactured by Diodes Incorporated. The manufacturer part number is DMN3012LEG-7. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs3 compliant. The product has -55°c ~ 150°c (tj) operating temperature range. Moreover, the product comes in 8-powerldfn. It has a maximum Rds On and voltage of 12mohm @ 15a, 5v, 6mohm @ 15a, 5v. The maximum gate charge and given voltages include 6.1nc @ 4.5v, 12.6nc @ 4.5v. The typical Vgs (th) (max) of the product is 2.1v @ 250µa, 1.15v @ 250µa. In addition, it is reach unaffected. The continuous current drain at 25°C is 10a (ta), 20a (tc). The product is available in 2 n-channel (dual) configuration. The diodes incorporated's product offers user-desired applications. The product has a 30v drain to source voltage. Its typical moisture sensitivity level is 1 (unlimited). It has a long 24 weeks standard lead time. The product's input capacitance at maximum includes 850pf @ 15v, 1480pf @ 15v. The product is available in surface mount configuration. powerdi3333-8 (type d) is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The maximum power of the product is 2.2w (tc). This product use mosfet (metal oxide) technology. Moreover, it corresponds to dmn3012, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Changes 11/May/2023(PCN Assembly/Origin)
pdf icon
DMN3012LEG(Datasheets)
pdf icon
Diodes Environmental Compliance Cert(Environmental Information)
