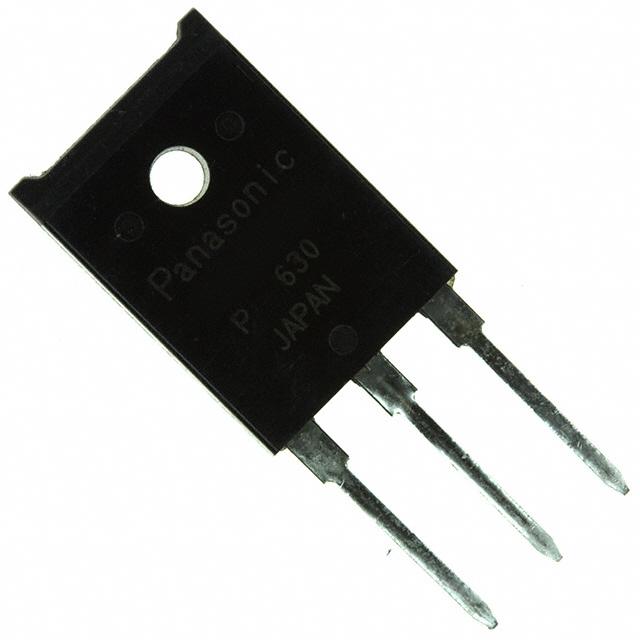

Panasonic Electronic Components 2SD17050P

2SD17050P Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Current - Collector (Ic) (Max):
10 A
HTSUS:
8541.29.0095
Operating Temperature:
150°C (TJ)
Package / Case:
TOP-3F
DC Current Gain (hFE) (Min) @ Ic, Vce:
130 @ 3A, 2V
Frequency - Transition:
20MHz
Vce Saturation (Max) @ Ib, Ic:
1.5V @ 1A, 10A
Voltage - Collector Emitter Breakdown (Max):
80 V
Transistor Type:
NPN
Package:
Bulk
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Collector Cutoff (Max):
10µA (ICBO)
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
TOP-3F-A1
Power - Max:
3 W
Base Product Number:
2SD170
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is 2SD17050P. The maximum collector current includes 10 a. It is assigned with possible HTSUS value of 8541.29.0095. The product has 150°c (tj) operating temperature range. Moreover, the product comes in top-3f. Furthermore, 130 @ 3a, 2v is the minimum DC current gain at given voltage. The transition frequency of the product is 20mhz. The 1.5v @ 1a, 10a is the maximum Vce saturation. The maximum collector emitter breakdown voltage of the product is 80 v. The transistor is a npn type. It is shipped in bulk package . Its typical moisture sensitivity level is 1 (unlimited). In addition, 10µa (icbo) is the maximum current at collector cutoff. The product is available in through hole configuration. top-3f-a1 is the supplier device package value. The maximum power of the product is 3 w. Moreover, it corresponds to 2sd170, a base product number of the product. The product is designated with the ear99 code number.
