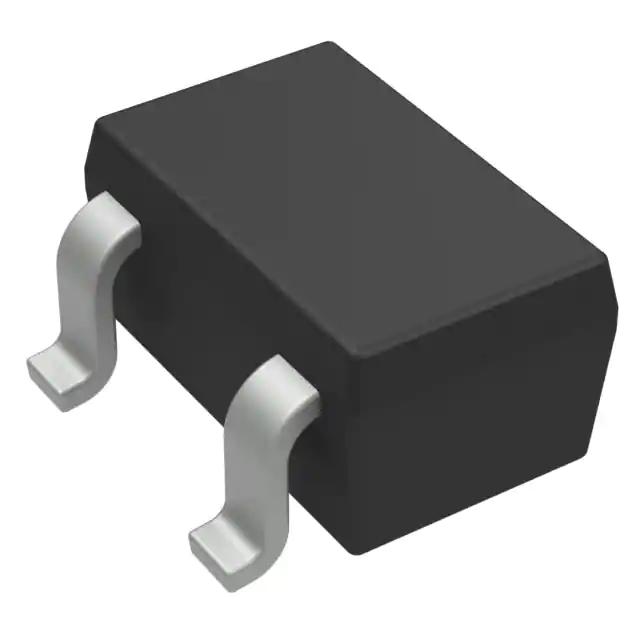

Nexperia USA Inc. PMST2369,115

PMST2369-115 Nexperia USA Inc. PMST2369,115
Nexperia USA Inc.

Product Information

Manufacturer Standard Lead Time:
12 Weeks
Base Part Number:
PMST2369
Detailed Description:
Bipolar (BJT) Transistor NPN 15V 200mA 500MHz 200mW Surface Mount SOT-323
DC Current Gain (hFE) (Min) @ Ic, Vce:
40 @ 10mA, 1V
Transistor Type:
NPN
Frequency - Transition:
500MHz
Mounting Type:
Surface Mount
Vce Saturation (Max) @ Ib, Ic:
250mV @ 1mA, 10mA
Series:
Automotive, AEC-Q101
Supplier Device Package:
SOT-323
Voltage - Collector Emitter Breakdown (Max):
15V
Packaging:
Cut Tape (CT)
Operating Temperature:
150°C (TJ)
Power - Max:
200mW
Customer Reference:
Package / Case:
SC-70, SOT-323
Current - Collector (Ic) (Max):
200mA
Current - Collector Cutoff (Max):
400nA (ICBO)
Manufacturer:
Nexperia USA Inc.
Checking for live stock

This is manufactured by Nexperia USA Inc.. The manufacturer part number is PMST2369,115. It has typical 12 weeks of manufacturer standard lead time. Base Part Number: pmst2369. It features bipolar (bjt) transistor npn 15v 200ma 500mhz 200mw surface mount sot-323. Furthermore, 40 @ 10ma, 1v is the minimum DC current gain at given voltage. The transistor is a npn type. The transition frequency of the product is 500mhz. The product is available in surface mount configuration. The 250mv @ 1ma, 10ma is the maximum Vce saturation. The product automotive, aec-q101, is a highly preferred choice for users. sot-323 is the supplier device package value. The maximum collector emitter breakdown voltage of the product is 15v. In addition, cut tape (ct) is the available packaging type of the product. The product has 150°c (tj) operating temperature range. The maximum power of the product is 200mw. Moreover, the product comes in sc-70, sot-323. The maximum collector current includes 200ma. In addition, 400na (icbo) is the maximum current at collector cutoff. The nexperia usa inc.'s product offers user-desired applications.

pdf icon
PMST2369(Datasheets)
pdf icon
Copper Wire Revision 07/May/2014(PCN Design/Specification)
pdf icon
SOT323 Copper Bond Wire 21/Dec/2013(PCN Design/Specification)
pdf icon
All Dev Label Chgs 2/Aug/2020(PCN Packaging)
pdf icon
Pack/Label Update 30/Nov/2016(PCN Packaging)
