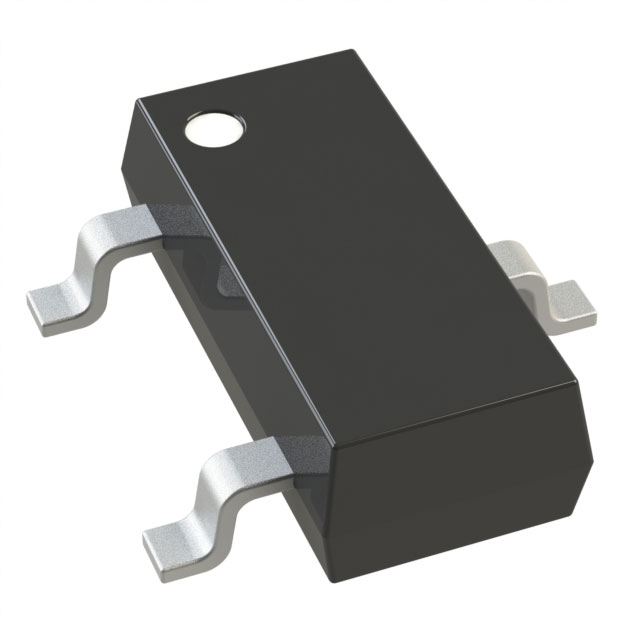

Panasonic Electronic Components DRC3143T0L

DRC3143T0L Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Resistor - Base (R1):
4.7 kOhms
Current - Collector (Ic) (Max):
100 mA
HTSUS:
8541.21.0095
RoHS Status:
RoHS Compliant
Package / Case:
SOT-723
DC Current Gain (hFE) (Min) @ Ic, Vce:
160 @ 5mA, 10V
edacadModel:
DRC3143T0L Models
Vce Saturation (Max) @ Ib, Ic:
250mV @ 500µA, 10mA
Voltage - Collector Emitter Breakdown (Max):
50 V
edacadModelUrl:
/en/models/2263680
Transistor Type:
NPN - Pre-Biased
Package:
Tape & Reel (TR)
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Collector Cutoff (Max):
500nA
Mounting Type:
Surface Mount
Series:
-
Supplier Device Package:
SSSMini3-F2-B
Power - Max:
100 mW
Base Product Number:
DRC3143
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is DRC3143T0L. Resistor - Base - 4.7 kohms. The maximum collector current includes 100 ma. It is assigned with possible HTSUS value of 8541.21.0095. The product is rohs compliant. Moreover, the product comes in sot-723. Furthermore, 160 @ 5ma, 10v is the minimum DC current gain at given voltage. The 250mv @ 500µa, 10ma is the maximum Vce saturation. The maximum collector emitter breakdown voltage of the product is 50 v. The transistor is a npn - pre-biased type. It is shipped in tape & reel (tr) package . Its typical moisture sensitivity level is 1 (unlimited). In addition, 500na is the maximum current at collector cutoff. The product is available in surface mount configuration. sssmini3-f2-b is the supplier device package value. The maximum power of the product is 100 mw. Moreover, it corresponds to drc3143, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Transfer 23/Jul/2019(PCN Other)
pdf icon
Mult Dev 23/Jul/2019(PCN Part Status Change)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search DRC3143T0L on website for other similar products.
We accept all major payment methods for all products including ET11144991. Please check your shopping cart at the time of order.
You can order Panasonic Electronic Components brand products with DRC3143T0L directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Transistors - Bipolar (BJT) - Single, Pre-Biased category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Panasonic Electronic Components DRC3143T0L. You can also check on our website or by contacting our customer support team for further order details on Panasonic Electronic Components DRC3143T0L.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11144991 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic Electronic Components" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11144991.
Yes. We ship DRC3143T0L Internationally to many countries around the world.
