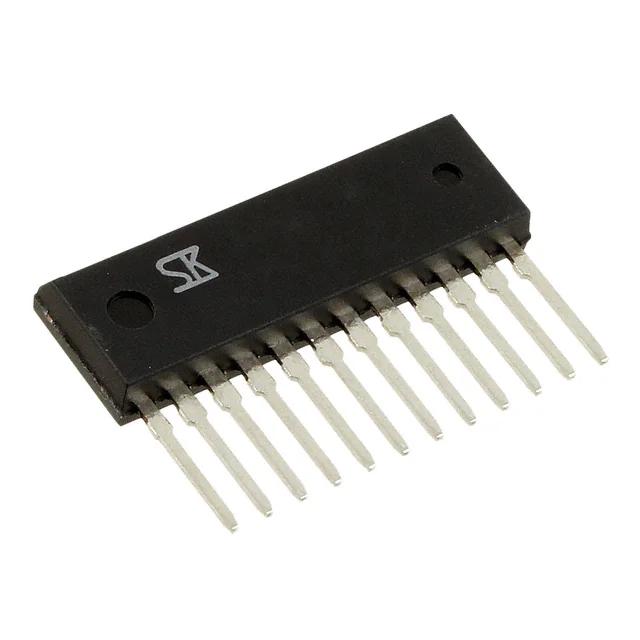

Sanken SMA6511

SMA6511 Sanken
Sanken

Product Information

Current - Collector (Ic) (Max):
1.5A, 3A
HTSUS:
8541.29.0095
RoHS Status:
RoHS Compliant
Operating Temperature:
150°C (TJ)
Package / Case:
12-SIP
DC Current Gain (hFE) (Min) @ Ic, Vce:
2000 @ 1A, 4V
Frequency - Transition:
-
Vce Saturation (Max) @ Ib, Ic:
1.5V @ 2mA, 1A
Voltage - Collector Emitter Breakdown (Max):
60V
Transistor Type:
4 NPN, 1 PNP Darlington
Package:
Tube
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Collector Cutoff (Max):
100µA (ICBO)
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
12-SIP
Power - Max:
4W
Base Product Number:
SMA65
ECCN:
EAR99
Checking for live stock

This is manufactured by Sanken. The manufacturer part number is SMA6511. The maximum collector current includes 1.5a, 3a. It is assigned with possible HTSUS value of 8541.29.0095. The product is rohs compliant. The product has 150°c (tj) operating temperature range. Moreover, the product comes in 12-sip. Furthermore, 2000 @ 1a, 4v is the minimum DC current gain at given voltage. The 1.5v @ 2ma, 1a is the maximum Vce saturation. The maximum collector emitter breakdown voltage of the product is 60v. The transistor is a 4 npn, 1 pnp darlington type. It is shipped in tube package . Its typical moisture sensitivity level is 1 (unlimited). In addition, 100µa (icbo) is the maximum current at collector cutoff. The product is available in through hole configuration. 12-sip is the supplier device package value. The maximum power of the product is 4w. Moreover, it corresponds to sma65, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Dev EOL 31/Mar/2021(PCN Obsolescence/ EOL)
pdf icon
SMA6511(Datasheets)
