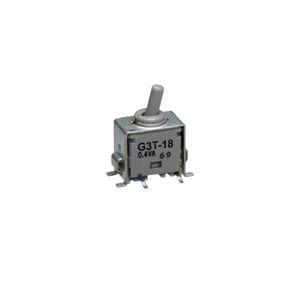

NKK Switches G3T18AB-S

G3T18AB-S NKK Switches
NKK Switches

Product Information

Contact Resistance:
80mΩ
Actuator Length:
3.8mm
Illuminated:
No
Mounting Type:
PCB
Voltage Rating:
28V ac/dc
Contact Current Rating:
0.4 VA
Operating Temperature Range:
-30 → +85°C
Contact Configuration:
SPDT
Minimum Operating Temperature:
-30°C
Switch Operation:
(On)-Off-(On)
Maximum Operating Temperature:
+85°C
Terminal Type:
Surface Mount
Contact Material:
Phosphor Bronze (Movable & Stationary)
HTSUS:
8536.50.9065
RoHS Status:
ROHS3 Compliant
Electrical Life:
50,000 Cycles
Termination Style:
Gull Wing
Voltage Rating - DC:
28 V
Operating Temperature:
-30°C ~ 85°C
Panel Cutout Dimensions:
-
Actuator Length:
3.81mm
Voltage Rating - AC:
28 V
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Package:
Bulk
Switch Function:
Mom-Off-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPDT
standardLeadTime:
18 Weeks
Current Rating (Amps):
0.4VA (AC/DC)
Ingress Protection:
-
Features:
Process Sealed
Mounting Type:
Surface Mount
Series:
G3T
Bushing Thread:
Unthreaded
Actuator Type:
Standard Round
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyphenylene Sulfide (PPS)
Base Product Number:
G3T18A
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by NKK Switches. The manufacturer part number is G3T18AB-S. It features a 80mω contact resistance. The actuator is a 3.8mm long. Illumination Option no. The product is available in pcb configuration. Moreover, the product has a nominal 28v ac/dc voltage rating. The rated contact current is 0.4 va. The product has -30 → +85°c of operating temperature range. The contact is equipped with spdt configuration. Whereas, the minimum operating temperature of the product is -30°c. It provides (on)-off-(on) switch operation. It has a maximum operating temperature of +85°c. The terminal is a surface mount type. The product is made from sturdy phosphor bronze (movable & stationary) materials. It is assigned with possible HTSUS value of 8536.50.9065. The product is rohs3 compliant. The product offers long-lasting services of 50,000 cycles. Moreover, it has gull wing terminal style. 28 v of DC voltage rating. The product has -30°c ~ 85°c operating temperature range. The actuator is a 3.81mm long. The product exhibits 28 v of AC voltage rating. In addition, it is reach unaffected. It is shipped in bulk package . It is designed as a mom-off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spdt circuit. It has a long 18 weeks standard lead time. Additionally, the product's output is 0.4va (ac/dc). The splendid features of the product include process sealed. The product is available in surface mount configuration. The product g3t, is a highly preferred choice for users. The product has bushing thread of unthreaded. The product carries standard round actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyphenylene sulfide (pps) material. Moreover, it corresponds to g3t18a, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet G3T18AB-S(Technical Reference)
pdf icon
G3T Series(Datasheets)
pdf icon
RoHS Cert - Switches & Pushbuttons(Environmental Information)
pdf icon
NKK Switches PFOS & PFOA Free Cert(Environmental Information)
pdf icon
NKK Switches ODC Cert(Environmental Information)
