Multi Function Timer Relay, Socket, 0.1 min → 10 h, 2 Contacts, DPDT, 24 V dc

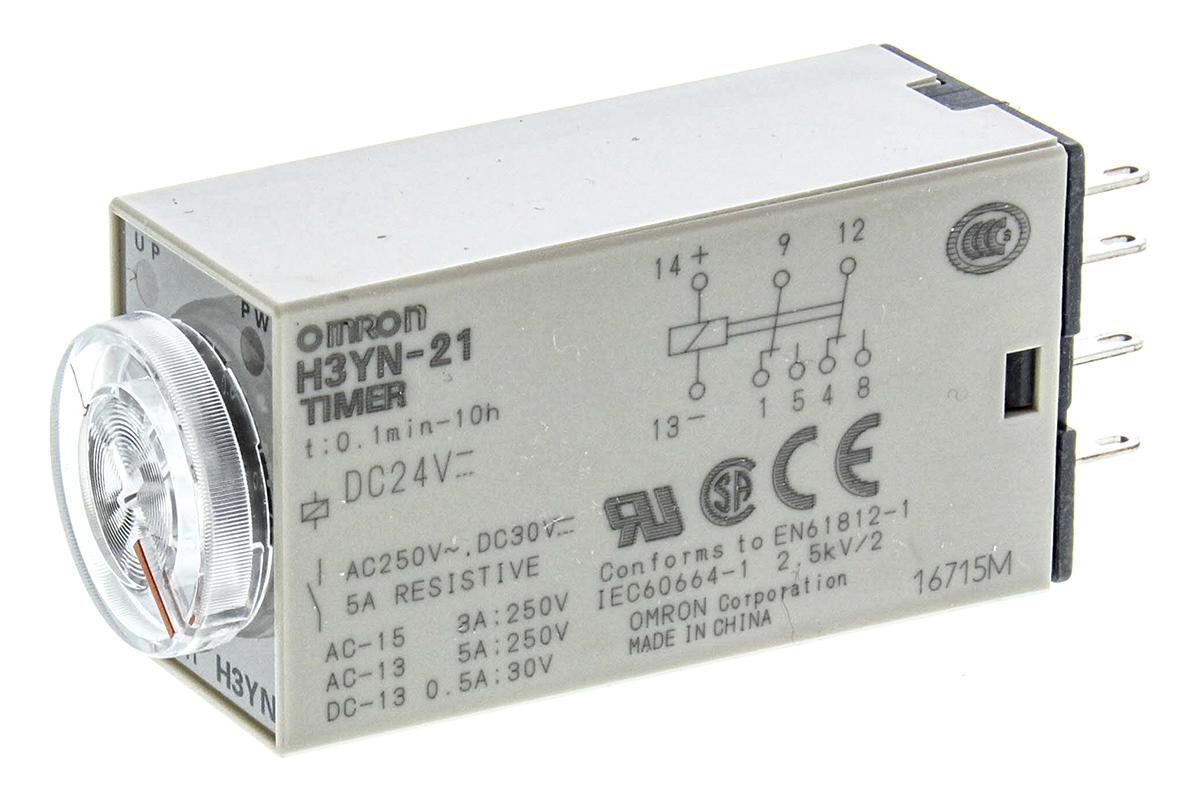

H3YN-21-DC24 Multi Function Timer Relay, Socket, 0.1 min → 10 h, 2 Contacts, DPDT, 24 V dc
H3YN-21 DC24
Omron

Product Information

Maximum Voltage:
250V ac
Width:
21.5mm
Supply Voltage:
24V dc
Maximum Current:
5A
Time Range:
0.1 min → 10h
Mode of Operation:
Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Number of Timer Functions:
Multi Function
Maximum Operating Temperature:
+50°C
Terminal Type:
Socket
Time Delay:
0.1s
Minimum Operating Temperature:
-10°C
Time Increment:
Hours, Minutes
Power Supply:
External
Switch Configuration:
DPDT
Length:
28mm
Minimum Voltage:
100V ac
Mounting Type:
DIN Rail, Panel Mount
Series:
H3YN
Depth:
63mm
Minimum Current:
3A
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=35218&DisplayLogo=False
Number of Contacts:
2
Contact Material:
Gold Plated
RoHs Compliant
Checking for live stock

The H3YN-21 DC24 is a versatile and reliable timer relay from Omron designed for various industrial applications. This DIN rail-mounted timer relay offers multiple timing functions, including ON-delay, OFF-delay, and interval timing, providing flexibility in controlling different processes. With its flicker OFF/ON start feature, the relay can start timing even with momentary power interruptions, ensuring uninterrupted operation. The relay's compact design and easy-to-use settings make it suitable for both new installations and upgrades. Key features include:

Special Features of H3YN-21 DC24 Omron Multi-Function Timer Relay:

  • Flicker OFF/ON start for reliable timing in fluctuating power conditions
  • Multiple timing functions (ON-delay, OFF-delay, interval timing)
  • DIN rail mounting for easy installation and space-saving
  • Clear indication of relay status through LED indicators
  • Wide operating voltage range for robust compatibility with multiple power sources.

Notable Benefits of the Product:

  • Enhanced process control and efficiency
  • Reliable operation in challenging environments
  • Easy configuration and maintenance
  • Versatile applications across different industries.

Versatile Applications of Omron H3YN-21 DC24 Programmable Timer Relay:

  • Machine automation and control
  • Packaging and bottling processes
  • Conveyor systems
  • Lighting control
  • Heating and cooling systems
  • Safety interlocks.

pdf icon
Datasheet(Technical Reference)
pdf icon
CSA LR22310-120(Technical Reference)
pdf icon
Selection Guide - H3 and H5 Series(Technical Reference)
