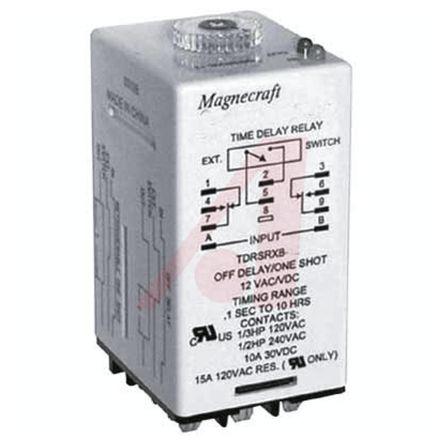

One Shot Multi Function Timer Relay, Square Blade, 0.1 s → 10 h, DPNO, 11 Contacts, DPDT, 12 V ac/dc

TDRSRXB-12 One Shot Multi Function Timer Relay, Square Blade, 0.1 s → 10 h, DPNO, 11 Contacts, DPDT, 12 V ac/dc
Schneider Electric

Product Information

Maximum Voltage:
120 V dc, 240 V ac
Width:
44mm
Supply Voltage:
12 V ac/dc
Current Maximum:
12 A
Time Range:
0.1 s → 10 h
Mode of Operation:
One Shot
Number of Timer Functions:
Multi Function
Maximum Operating Temperature:
+55°C
Terminal Type:
Square Blade
Time Delay:
50 ms
Time Increment:
Hours, Minutes, Seconds
Power Supply:
Internal
Switch Configuration:
DPDT
Contact Configuration:
DPNO
Length:
36mm
Minimum Voltage:
12 V ac/dc
Mounting Type:
DIN Rail
Series:
TDRSRXB
Depth:
68.3mm
Minimum Operating Temperature:
-20°C
Number of Contacts:
11
Contact Material:
Silver Alloy
RoHs Compliant
Checking for live stock

This is One Shot Multi Function Timer Relay Square Blade 0.1 s → 10 h DPNO 11 Contacts DPDT 12 V ac/dc manufactured by Schneider Electric. The manufacturer part number is TDRSRXB-12. It has a maximum 120 v dc, 240 v ac voltage . Furthermore, the product is 44mm wide. Features 12 v ac/dc supply voltage. It has a maximum 12 a current . It has a standard 0.1 s → 10 h time range . Its mode of operation is one shot . It includes a multi function functions timer . It has a maximum operating temperature of +55°c. The terminal is a square blade type. Additionally, its time delay is about 50 ms . Its time increment is in hours, minutes, seconds . It includes a/an internal power supply . It is created with a/an dpdt switch configuration . The contact is equipped with dpno configuration. Its accurate length is 36mm. It has a minimum 12 v ac/dc voltage . The product is available in din rail configuration. The product tdrsrxb, is a highly preferred choice for users. The product comes in 68.3mm depth. Whereas, the minimum operating temperature of the product is -20°c. The product contains 11 contacts. The product is made from sturdy silver alloy materials.
