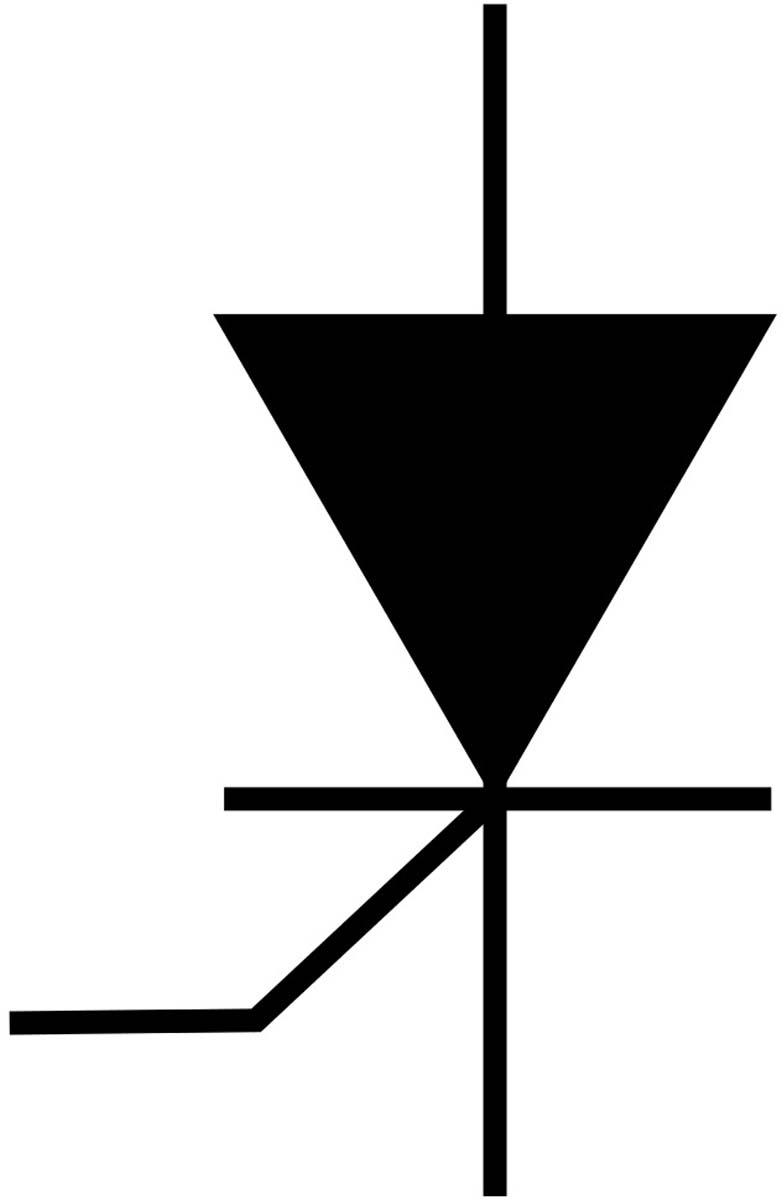

Fagor Electronica, FS1209NH TU, Thyristor, 800V 12A, 15mA 3-Pin, TO-220AB

FS1209NH-TU Fagor Electronica, FS1209NH TU, Thyristor, 800V 12A, 15mA 3-Pin, TO-220AB
FS1209NH TU
FS1209NH TU
Fagor Electronica

Product Information

Priced to Clear:
Yes
Repetitive Peak Reverse Voltage:
800V
Peak On-State Voltage:
1.6V
Dimensions:
10.36 x 4.67 x 15.35mm
Mounting Type:
Through Hole
Repetitive Peak Forward Blocking Voltage:
800V
Surge Current Rating:
140A
Rated Average On-State Current:
12A
Off-State Voltage:
800V
Repetitive Peak Off-State Current:
2mA
Package Type:
TO-220AB
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
30mA
Maximum Gate Trigger Current:
15mA
Thyristor Type:
SCR
Maximum Operating Temperature:
+125 °C
Pin Count:
3
Maximum Gate Trigger Voltage:
1.3V
RoHs Compliant
Checking for live stock

This is Thyristor 800V 12A 15mA 3-Pin TO-220AB manufactured by Fagor Electronica. The manufacturer part number is FS1209NH TU. Priced to Clear Options - yes. It has about 800v repetitive reverse voltage . It has a peak on-state voltage about 1.6v . The given dimensions of the product include 10.36 x 4.67 x 15.35mm. The product is available in through hole configuration. Moreover, it has a repetitive peak forward blocking voltage about 800v . It has about 140a surge current rating . Moreover, it has about 12a rated average on-state current . Additionally, it has 800v off-state voltage . Its repetitive peak off-state current is approximately 2ma . The package is a sort of to-220ab. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 30ma holding current . In addition, the product has a maximum 15ma gate trigger current . In addition, the product has a/an scr type thyristor . It has a maximum operating temperature of +125 °c. It contains 3 pins. Moreover, it has a maximum 1.3v gate trigger voltage .

pdf icon
FS12 Series 12A SCR(Technical Reference)
