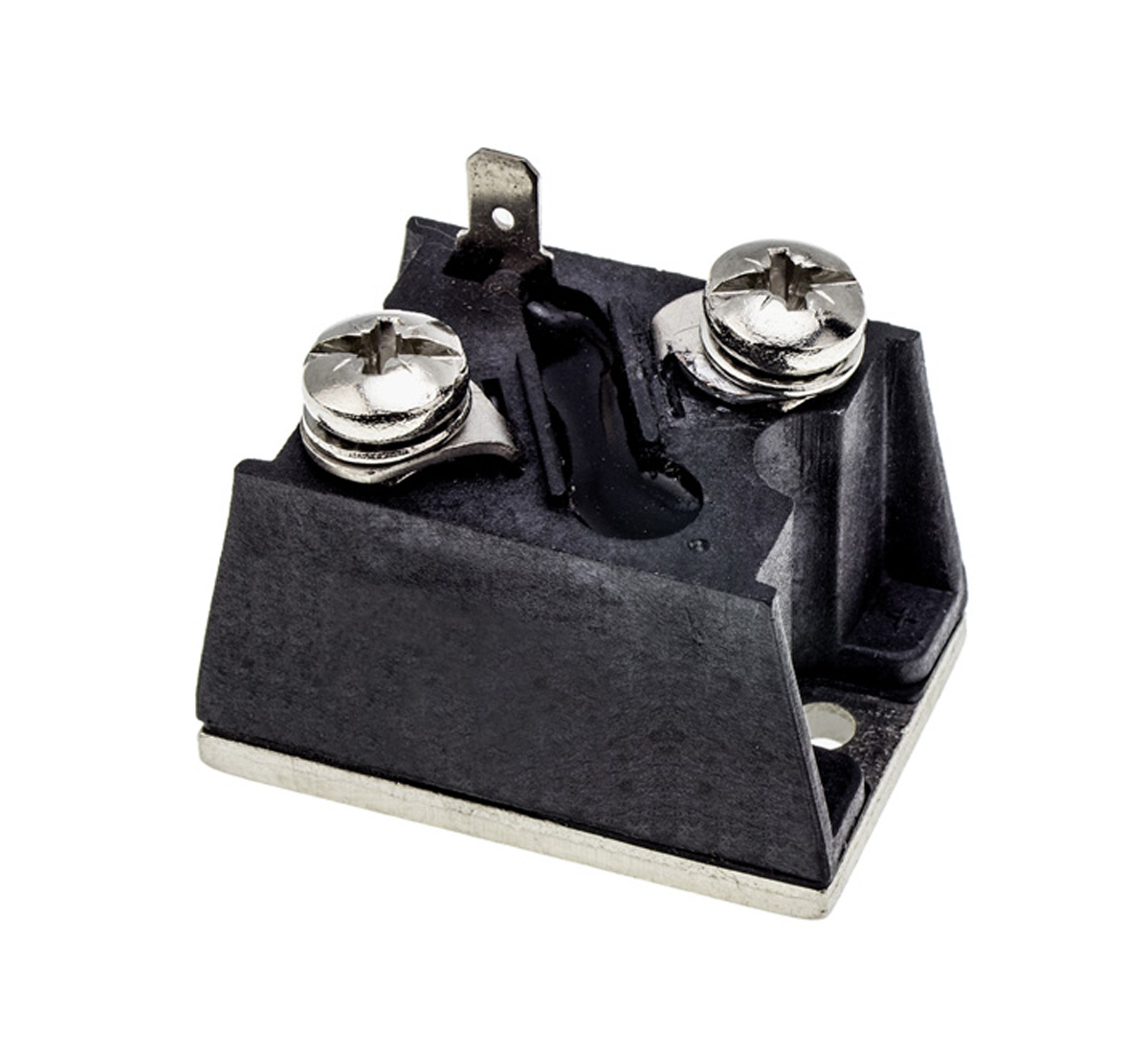

Vishay, VS-T90RIA100, Thyristor, 1000V 90A, 120mA 3-Pin, D 55

VS-T90RIA100 Vishay, , Thyristor, 1000V 90A, 120mA 3-Pin, D 55
VS-T90RIA100
Vishay

Product Information

Repetitive Peak Forward Blocking Voltage:
1000V
Repetitive Peak Reverse Voltage:
1000V
Peak On-State Voltage:
1.55V
Dimensions:
41 x 27 x 25mm
Mounting Type:
Panel Mount
Surge Current Rating:
1870A
Rated Average On-State Current:
90A
Repetitive Peak Off-State Current:
0.1mA
Package Type:
D 55
Minimum Operating Temperature:
-40 °C
Maximum Holding Current:
200mA
Maximum Gate Trigger Current:
120mA
Thyristor Type:
SCR
Maximum Operating Temperature:
+125 °C
Pin Count:
3
Maximum Gate Trigger Voltage:
2.5V
RoHs Compliant
Checking for live stock

This is Thyristor 1000V 90A 120mA 3-Pin D 55 manufactured by Vishay. The manufacturer part number is VS-T90RIA100. Moreover, it has a repetitive peak forward blocking voltage about 1000v . It has about 1000v repetitive reverse voltage . It has a peak on-state voltage about 1.55v . The given dimensions of the product include 41 x 27 x 25mm. The product is available in panel mount configuration. It has about 1870a surge current rating . Moreover, it has about 90a rated average on-state current . Its repetitive peak off-state current is approximately 0.1ma . The package is a sort of d 55. Whereas, the minimum operating temperature of the product is -40 °c. The product has a maximum 200ma holding current . In addition, the product has a maximum 120ma gate trigger current . In addition, the product has a/an scr type thyristor . It has a maximum operating temperature of +125 °c. It contains 3 pins. Moreover, it has a maximum 2.5v gate trigger voltage .

pdf icon
T..RIA Series Phase Control Thyristors Data Sheet(Technical Reference)
