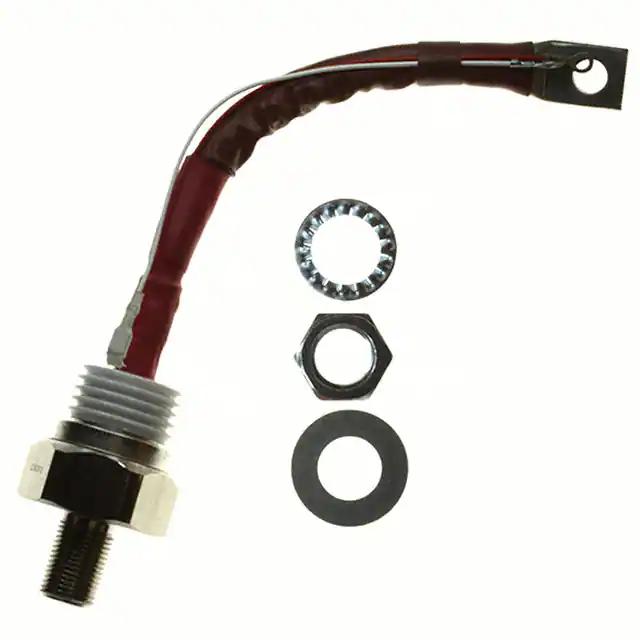

Vishay Semiconductor Diodes Division VS-180RKI80PBF

VS-180RKI80PBF Vishay Semiconductor Diodes Division
Vishay Semiconductor Diodes Division

Product Information

Voltage - On State (Vtm) (Max):
1.35V
Base Part Number:
180RKI80
Detailed Description:
SCR 800V 285A Standard Recovery Chassis, Stud Mount TO-209AB (TO-93)
Current - Off State (Max):
30mA
Mounting Type:
Chassis, Stud Mount
Current - On State (It (AV)) (Max):
180A
Supplier Device Package:
TO-209AB (TO-93)
Manufacturer Standard Lead Time:
37 Weeks
Voltage - Gate Trigger (Vgt) (Max):
2.5V
Packaging:
Bulk
Voltage - Off State:
800V
Operating Temperature:
-40°C ~ 125°C
Current - Gate Trigger (Igt) (Max):
150mA
SCR Type:
Standard Recovery
Customer Reference:
Current - Non Rep. Surge 50, 60Hz (Itsm):
3800A, 4000A
Package / Case:
TO-209AB, TO-93-4, Stud
Current - On State (It (RMS)) (Max):
285A
Current - Hold (Ih) (Max):
600mA
Manufacturer:
Vishay Semiconductor Diodes Division
Checking for live stock

This is manufactured by Vishay Semiconductor Diodes Division. The manufacturer part number is VS-180RKI80PBF. The maximum on state voltage includes 1.35v . Base Part Number: 180rki80. It features scr 800v 285a standard recovery chassis, stud mount to-209ab (to-93). The maximum off state current is 30ma . The product is available in chassis, stud mount configuration. Maximum on state current of 180a. to-209ab (to-93) is the supplier device package value. It has typical 37 weeks of manufacturer standard lead time. While the maximum voltage - gate trigger includes 2.5v. In addition, bulk is the available packaging type of the product. It has an off state voltage of 800v. The product has -40°c ~ 125°c operating temperature range. The maximum gate triggering current is 150ma. It is a standard recovery SCR. Non rep. current with 50, 60Hz surge included 3800a, 4000a. Moreover, the product comes in to-209ab, to-93-4, stud. The maximum 285a of on state current. The maximum hold current is 600ma. The vishay semiconductor diodes division's product offers user-desired applications.

pdf icon
Stud Family Assembly Chg 4/Sep/2019(PCN Assembly/Origin)
pdf icon
VS-180/181RKIxxxPbF(Datasheets)
pdf icon
PCN-DD-014-2014 Rev 00 11/Jul/2014(PCN Design/Specification)
