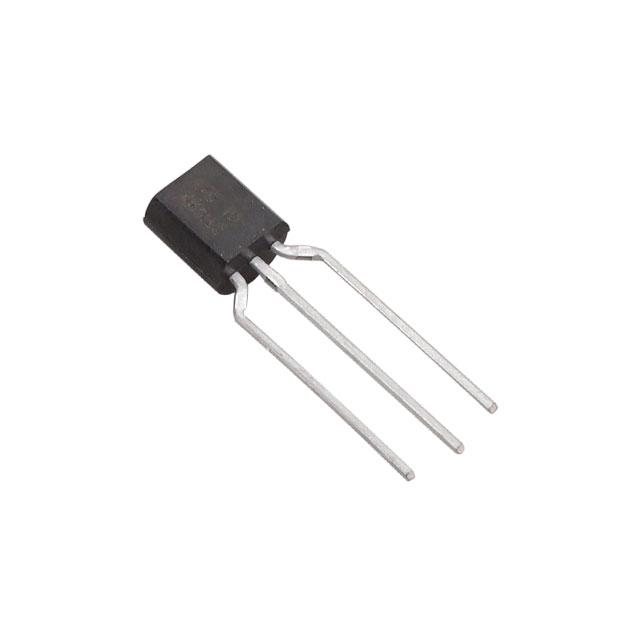

WeEn Semiconductors BT169D-L,116

BT169D-L-116 WeEn Semiconductors BT169D-L,116
WeEn Semiconductors

Product Information

HTSUS:
8541.30.0080
RoHS Status:
RoHS Compliant
Voltage - Off State:
400 V
Voltage - Gate Trigger (Vgt) (Max):
800 mV
Operating Temperature:
125°C (TJ)
Package / Case:
TO-226-3, TO-92-3 (TO-226AA) Formed Leads
Current - Hold (Ih) (Max):
1 mA
edacadModel:
BT169D-L,116 Models
Current - On State (It (RMS)) (Max):
800 mA
edacadModelUrl:
/en/models/3430642
Package:
Tape & Reel (TR)
Current - Off State (Max):
2 µA
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Gate Trigger (Igt) (Max):
50 µA
standardLeadTime:
8 Weeks
Current - Non Rep. Surge 50, 60Hz (Itsm):
8A, 9A
Voltage - On State (Vtm) (Max):
1.7 V
Mounting Type:
Through Hole
Current - On State (It (AV)) (Max):
500 mA
Series:
-
Supplier Device Package:
TO-92-3
SCR Type:
Sensitive Gate
Base Product Number:
BT169
ECCN:
EAR99
Checking for live stock

This is manufactured by WeEn Semiconductors. The manufacturer part number is BT169D-L,116. It is assigned with possible HTSUS value of 8541.30.0080. The product is rohs compliant. It has an off state voltage of 400 v. While the maximum voltage - gate trigger includes 800 mv. The product has 125°c (tj) operating temperature range. Moreover, the product comes in to-226-3, to-92-3 (to-226aa) formed leads. The maximum hold current is 1 ma. The maximum 800 ma of on state current. It is shipped in tape & reel (tr) package . The maximum off state current is 2 µa . Its typical moisture sensitivity level is 1 (unlimited). The maximum gate triggering current is 50 µa. It has a long 8 weeks standard lead time. Non rep. current with 50, 60Hz surge included 8a, 9a. The maximum on state voltage includes 1.7 v . The product is available in through hole configuration. Maximum on state current of 500 ma. to-92-3 is the supplier device package value. It is a sensitive gate SCR. Moreover, it corresponds to bt169, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult Dev A/T Chg 11/Mar/2021(PCN Assembly/Origin)
pdf icon
Joint Venture Revision 07/Aug/2015(PCN Other)
pdf icon
BT169D-L(Datasheets)
pdf icon
Part Status Conversion 22/Nov/2015(PCN Part Status Change)
pdf icon
All Device Label Chg 14/Feb/2020(PCN Packaging)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search BT169D-L,116 on website for other similar products.
We accept all major payment methods for all products including ET11932126. Please check your shopping cart at the time of order.
You can order WeEn Semiconductors brand products with BT169D-L,116 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Thyristors - SCRs category are shipped in lowest possible time.
You will get a confirmation email regarding your order of WeEn Semiconductors BT169D-L,116. You can also check on our website or by contacting our customer support team for further order details on WeEn Semiconductors BT169D-L,116.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET11932126 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "WeEn Semiconductors" products on our website by using Enrgtech's Unique Manufacturing Part Number ET11932126.
Yes. We ship BT169D-L,116 Internationally to many countries around the world.
