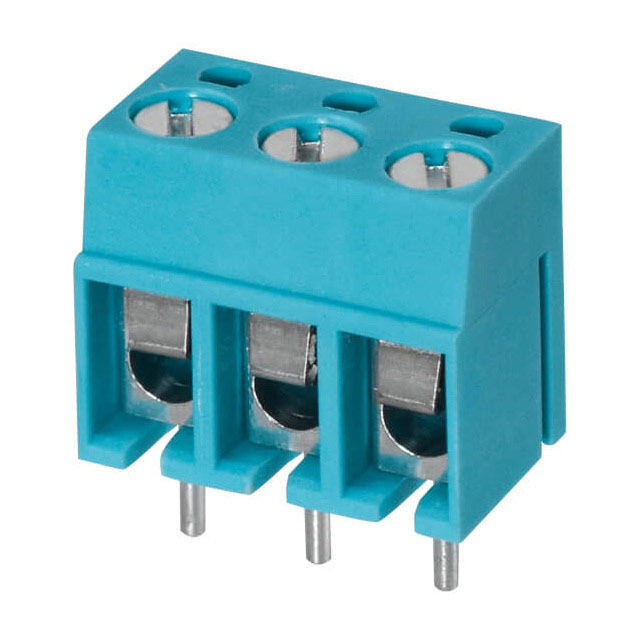

CUI Devices TB001-500-03BE

TB001-500-03BE CUI Devices
TB001-500-03BE
TB001-500-03BE
CUI Devices

Product Information

Number of Contacts:
3
Mounting Type:
Screw Mount
Pitch:
5mm
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Current:
15 A
Operating Temperature:
-40°C ~ 105°C
Wire Termination:
Screw - Leaf Spring, Wire Guard
Contact Material - Plating:
Copper Alloy - Tin Plated
Mating Orientation:
Horizontal with Board
title:
TB001-500-03BE
Screw Thread:
M3
REACH Status:
REACH Unaffected
edacadModel:
TB001-500-03BE Models
edacadModelUrl:
/en/models/10064059
Manufacturer:
CUI Devices
Wire Gauge:
12-22 AWG
Clamp Material - Plating:
Steel, Stainless
Screw Material - Plating:
Steel - Zinc Plated
Moisture Sensitivity Level (MSL):
Not Applicable
Torque - Screw:
0.5 Nm (4.4 Lb-In)
standardLeadTime:
18 Weeks
Housing Material:
Polybutylene Terephthalate (PBT)
Number of Levels:
1
Features:
Interlocking (Side)
Mounting Type:
Through Hole
Color:
Blue
Series:
TB001-500
Positions Per Level:
3
Packaging:
Bag
Voltage:
300 V
Pitch:
0.197" (5.00mm)
Base Product Number:
TB001
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is TB001-500-03BE. The product contains 3 contacts. The product is available in screw mount configuration. Moreover, the product is 5mm. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Features a 15 a current in A. The product has -40°c ~ 105°c operating temperature range. The wire terminals available include screw - leaf spring, wire guard. While the contact is copper alloy - tin plated. The mating comes in a horizontal with board orientation. The product has a m3 screw threads. In addition, it is reach unaffected. The cui devices's product offers user-desired applications. Moreover, the product has a wire gauge of 12-22 awg. The clamp is designed from robust materials including steel, stainless. The screw offers added strength and is made from steel - zinc plated. Its typical moisture sensitivity level is not applicable. It carries torque - screw values of 0.5 nm (4.4 lb-in). It has a long 18 weeks standard lead time. The product also features robust polybutylene terephthalate (pbt) housing material. The product carries 1 levels. The splendid features of the product include interlocking (side). The product is available in through hole configuration. It has a classic blue colour. The product tb001-500, is a highly preferred choice for users. It has 3 positions each level. In addition, bag is the available packaging type of the product. It carries a 300 v of voltage. Moreover, the product is 0.197" (5.00mm). Moreover, it corresponds to tb001, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet - TB001-500-03BE(Technical Reference)
pdf icon
TB001-500 Series Datasheet(Datasheets)
