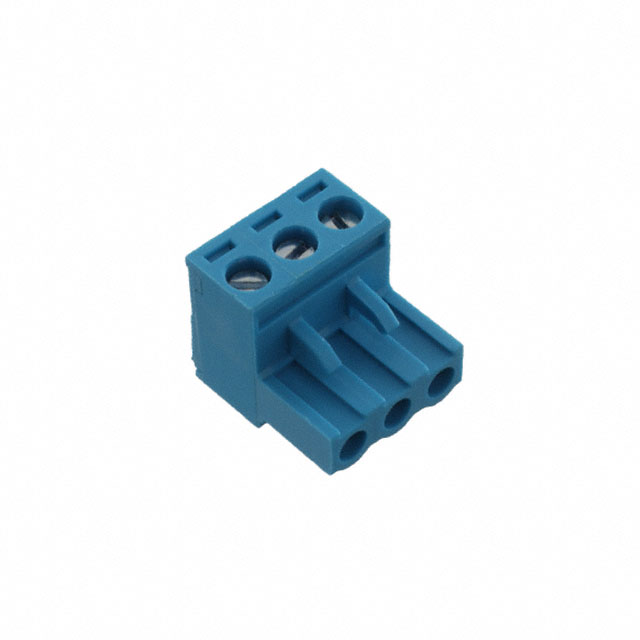

CUI Devices TBP01P1-508-03BE

TBP01P1-508-03BE CUI Devices
TBP01P1-508-03BE
TBP01P1-508-03BE
CUI Devices

Product Information

Number of Contacts:
3
Pluggable Terminal Block Type:
Plug
Mounting Type:
PCB Mount
Pitch:
5.08mm
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA66), Nylon 6/6
Operating Temperature:
-40°C ~ 105°C
Screw Size:
M3
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
3
Wire Gauge or Range - mm²:
2.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.591" (15.00mm)
REACH Status:
REACH Unaffected
edacadModel:
TBP01P1-508-03BE Models
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/10238368
Manufacturer:
CUI Devices
Contact Tail Length:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
20A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-28 AWG
Voltage - UL:
300 V
Torque - Screw:
0.5 Nm (4.4 Lb-In)
standardLeadTime:
18 Weeks
Contact Mating Finish:
Nickel
Voltage - IEC:
320 V
Ingress Protection:
-
Features:
Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Blue
Series:
TBP01P1-508
Positions Per Level:
3
Packaging:
Bag
Header Orientation:
-
Current - UL:
16 A
Pitch:
0.200" (5.08mm)
Contact Material:
Copper Alloy
Base Product Number:
TBP01P1
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is TBP01P1-508-03BE. The product contains 3 contacts. The product is available in pcb mount configuration. Moreover, the product is 5.08mm. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa66), nylon 6/6 housing material. The product has -40°c ~ 105°c operating temperature range. It is available in screw size of m3. The typical length of the wire strip is 7mm. It comes in plug, female sockets configuration. The product carries possible position value of 3. A 2.5mm² of wire gauge. It also a 180° plug wire entry. 0.591" (15.00mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The cui devices's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 20a. The product carries 1 levels. While 12-28 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.5 nm (4.4 lb-in). It has a long 18 weeks standard lead time. The mating finish of the contact is nickel. The nominal voltage of the product is 320 v. The splendid features of the product include retention latches (non-wire side). The product is available in free hanging (in-line) configuration. It has a classic blue colour. The product tbp01p1-508, is a highly preferred choice for users. It has 3 positions each level. In addition, bag is the available packaging type of the product. The typical current includes 16 a. Moreover, the product is 0.200" (5.08mm). The product is made from sturdy copper alloy materials. Moreover, it corresponds to tbp01p1, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet - TBP01P1-508-03BE(Technical Reference)
pdf icon
TBP01P1-508 Series Datasheet(Datasheets)
