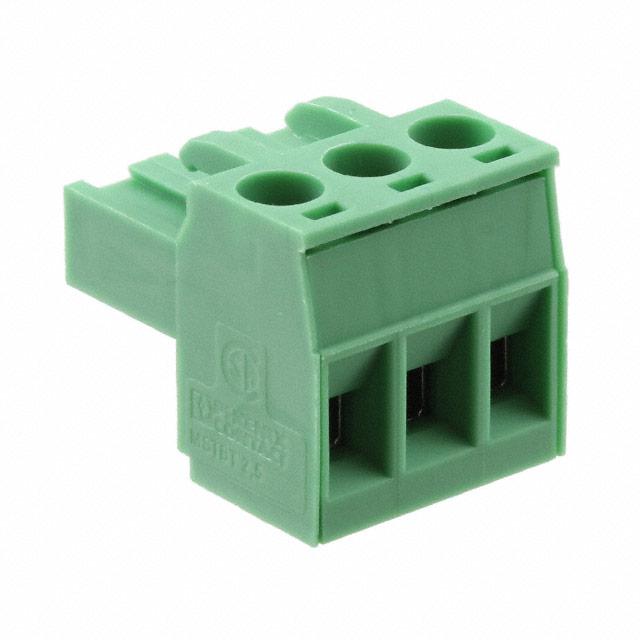

Phoenix Contact 1926248

1926248 Phoenix Contact
1926248
1926248
Phoenix Contact

Product Information

Material:
Polyamide, Tin
Current Rating:
16A
Voltage Rating:
630 V
Gender:
Female
Colour:
Green
Pitch:
5mm
Termination Method:
Screw
Series:
MSTBT 2.5 HC/3-ST
Number of Contacts:
3
Type:
Plug
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M3
Wire Strip Length:
7mm
Type:
Plug, Female Sockets
Number of Positions:
3
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.2-2.5mm²
Plug Wire Entry:
180°
Insulation Height:
0.591" (15.00mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
16A
Number of Levels:
1
Wire Gauge or Range - AWG:
12-30 AWG
Voltage - UL:
300 V
Torque - Screw:
0.5-0.6 Nm (4.4-5.3 Lb-In)
standardLeadTime:
7 Weeks
Contact Mating Finish:
Tin
Voltage - IEC:
630 V
Ingress Protection:
-
Features:
Retention Latches (Non-Wire Side)
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON MSTBT
Positions Per Level:
3
Packaging:
Bulk
Header Orientation:
-
Current - UL:
16 A
Pitch:
0.197" (5.00mm)
Contact Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1926248. The product is made from highly stable and reliable polyamide, tin. The product has a current rating of 16a. Moreover, the product has a nominal 630 v voltage rating. In addition, female is the available "Gender" of the product. It has a decent green colour. Moreover, the product is 5mm. It allows screw termination method. The product mstbt 2.5 hc/3-st, is a highly preferred choice for users. The product contains 3 contacts. It comes in plug configuration. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m3. The typical length of the wire strip is 7mm. It comes in plug, female sockets configuration. The product carries possible position value of 3. A 0.2-2.5mm² of wire gauge. It also a 180° plug wire entry. 0.591" (15.00mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 16a. The product carries 1 levels. While 12-30 awg is its range or wire gauge. While 300 v is the typical voltage of the product. It carries torque - screw values of 0.5-0.6 nm (4.4-5.3 lb-in). It has a long 7 weeks standard lead time. The mating finish of the contact is tin. The nominal voltage of the product is 630 v. The splendid features of the product include retention latches (non-wire side). The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon mstbt, is a highly preferred choice for users. It has 3 positions each level. In addition, bulk is the available packaging type of the product. The typical current includes 16 a. Moreover, the product is 0.197" (5.00mm). The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
1926248(Datasheets)
pdf icon
Design chg 30/JAN/2023(PCN Design/Specification)
