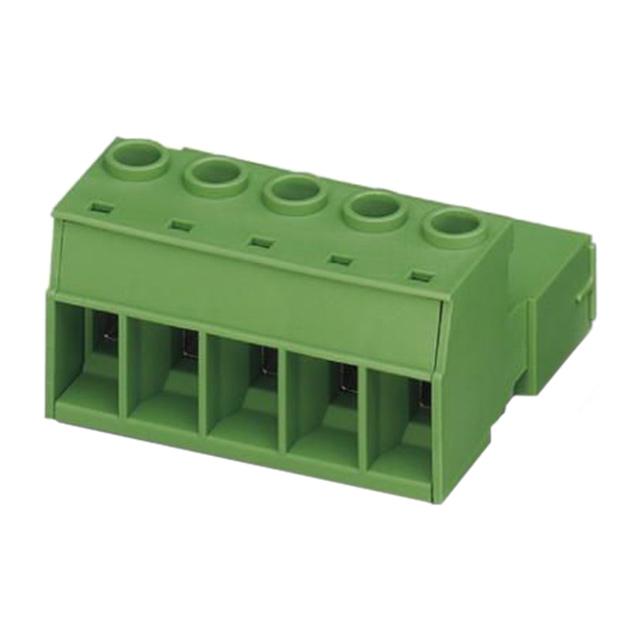

Phoenix Contact 1969409

1969409 Phoenix Contact
1969409
Phoenix Contact

Product Information

Material:
Polyamide, Silver
Current Rating:
76A
Voltage Rating:
1 kV
Gender:
Female
Colour:
Green
Pitch:
10.16mm
Termination Method:
Screw
Series:
IPC 16/ 5-ST-10.16
Number of Contacts:
5
Type:
Inverted Plug
HTSUS:
8536.90.4000
RoHS Status:
ROHS3 Compliant
Termination Style:
Screw - Rising Cage Clamp
Housing Material:
Polyamide (PA), Nylon
Operating Temperature:
-
Screw Size:
M4
Wire Strip Length:
12mm
Type:
Plug, Male Pins
Number of Positions:
5
Contact Tail Length:
-
Wire Gauge or Range - mm²:
0.75-16mm²
Plug Wire Entry:
180°
Insulation Height:
1.094" (27.80mm)
REACH Status:
REACH Unaffected
Material Flammability Rating:
UL94 V-0
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - IEC:
76A
Number of Levels:
1
Wire Gauge or Range - AWG:
6-20 AWG
Voltage - UL:
600 V
Torque - Screw:
1.7-1.8 Nm (15-15.9 Lb-In)
standardLeadTime:
7 Weeks
Contact Mating Finish:
Silver
Voltage - IEC:
1 kV
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Color:
Green
Series:
COMBICON IPC
Positions Per Level:
5
Packaging:
Bulk
Header Orientation:
-
Current - UL:
55 A
Pitch:
0.400" (10.16mm)
Contact Material:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1969409. The product is made from highly stable and reliable polyamide, silver. The product has a current rating of 76a. Moreover, the product has a nominal 1 kv voltage rating. In addition, female is the available "Gender" of the product. It has a decent green colour. Moreover, the product is 10.16mm. It allows screw termination method. The product ipc 16/ 5-st-10.16, is a highly preferred choice for users. The product contains 5 contacts. It comes in inverted plug configuration. It is assigned with possible HTSUS value of 8536.90.4000. The product is rohs3 compliant. Moreover, it has screw - rising cage clamp terminal style. The product also features robust polyamide (pa), nylon housing material. It is available in screw size of m4. The typical length of the wire strip is 12mm. It comes in plug, male pins configuration. The product carries possible position value of 5. A 0.75-16mm² of wire gauge. It also a 180° plug wire entry. 1.094" (27.80mm) of insulation height. In addition, it is reach unaffected. It carries ul94 v-0 of material flammability rating. The phoenix contact's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). An IEC current of 76a. The product carries 1 levels. While 6-20 awg is its range or wire gauge. While 600 v is the typical voltage of the product. It carries torque - screw values of 1.7-1.8 nm (15-15.9 lb-in). It has a long 7 weeks standard lead time. The mating finish of the contact is silver. The nominal voltage of the product is 1 kv. The product is available in free hanging (in-line) configuration. It has a classic green colour. The product combicon ipc, is a highly preferred choice for users. It has 5 positions each level. In addition, bulk is the available packaging type of the product. The typical current includes 55 a. Moreover, the product is 0.400" (10.16mm). The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
1969409(Datasheets)
