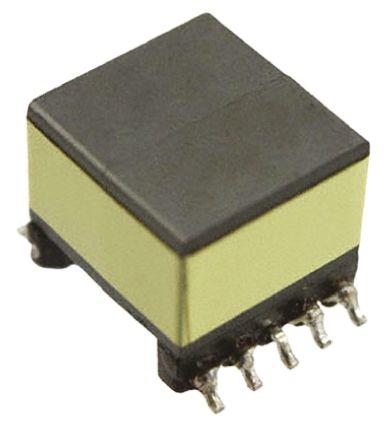

3:1 Surface Mount Flyback Transformer, 9.07μH, 0.036Ω

750311564 3:1 Surface Mount Flyback Transformer, 9.07μH, 0.036Ω
Wurth Elektronik

Product Information

Primary DC Resistance:
0.036Ω
Isolation Voltage:
2.5kV
Dimensions:
17.75 x 13.46 x 12.7mm
Mounting Type:
Surface Mount
Secondary Voltage Rating:
5 V, 8 V
Leakage Inductance:
250nH
Minimum Temperature:
-40°C
Length:
17.75mm
Width:
13.46mm
Depth:
12.7mm
Maximum Temperature:
+125°C
Turns Ratio:
3:1
Primary Voltage Rating:
10V
Primary Inductance:
9.07µH
Power Rating:
15W
Secondary DC Resistance:
0.007Ω
RoHs Compliant
Checking for live stock

This is 3:1 Surface Mount Flyback Transformer 9.07μH 0.036Ω manufactured by Wurth Elektronik. The manufacturer part number is 750311564. Additionally, it has 0.036ω primary DC resistance . It has 2.5kv isolation voltage. The given dimensions of the product include 17.75 x 13.46 x 12.7mm. The product is available in surface mount configuration. In addition, it has a secondary 5 v, 8 v voltage rating . It has about 250nh leakage inductance . While its minimum temperature is -40°c. Its accurate length is 17.75mm. Furthermore, the product is 13.46mm wide. The product comes in 12.7mm depth. The product has +125°c maximum temperature. It has 3:1 turns ratio . It has about 10v primary voltage rating . Additionally, it has 9.07µh primary inductance . Feature 15w of power rating. It has about 0.007ω secondary DC resistance .

pdf icon
Datasheet(Technical Reference)
pdf icon
Flyback Transformator Ui10-40V Uo5V 15W(Technical Reference)
