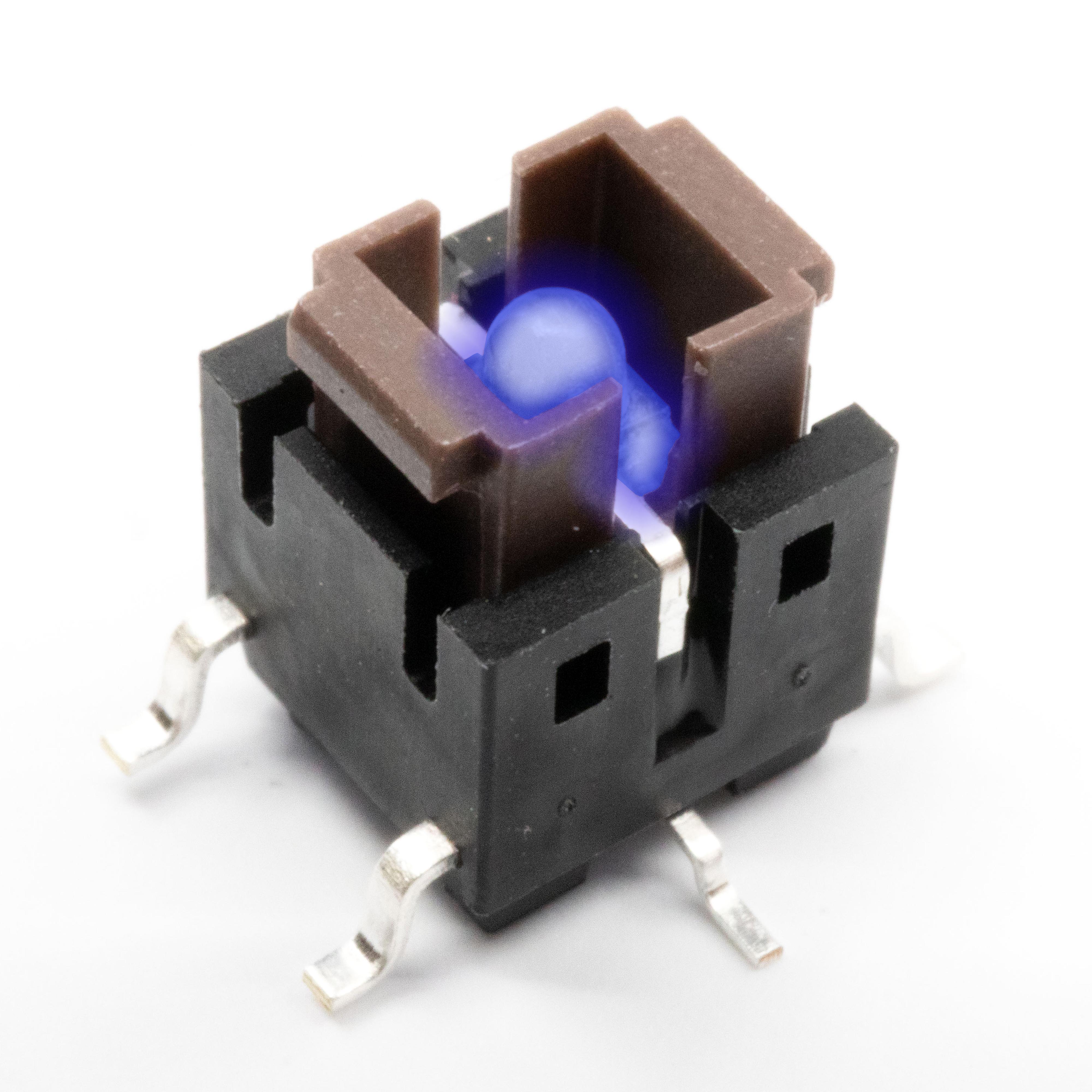

E-Switch TL3240F260BT

TL3240F260BT E-Switch
E-Switch

Product Information

Operating Force:
260gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Operating Temperature:
-25°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
200,000 Cycles
Actuator Height off PCB, Vertical:
7.80mm
Illumination Type, Color:
LED, Blue
Outline:
6.10mm x 6.10mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
13 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
TL3240
Switch Travel:
0.20mm
Actuator Type:
Plunger for Cap
Illumination:
Illuminated
Illumination Voltage (Nominal):
3.2 VDC
Actuator Material:
-
Base Product Number:
TL3240
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL3240F260BT. It has a 260gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. The product has -25°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 200,000 cycles. Features 7.80mm actuator vertical height off PCB. It is supplied with led, blue illumination. The given outline of the product is 6.10mm x 6.10mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 13 weeks standard lead time. The product is available in surface mount configuration. The product tl3240, is a highly preferred choice for users. The product has a switching travel of 0.20mm. The product carries plunger for cap actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 3.2 vdc. Moreover, it corresponds to tl3240, a base product number of the product. The product is designated with the ear99 code number.
