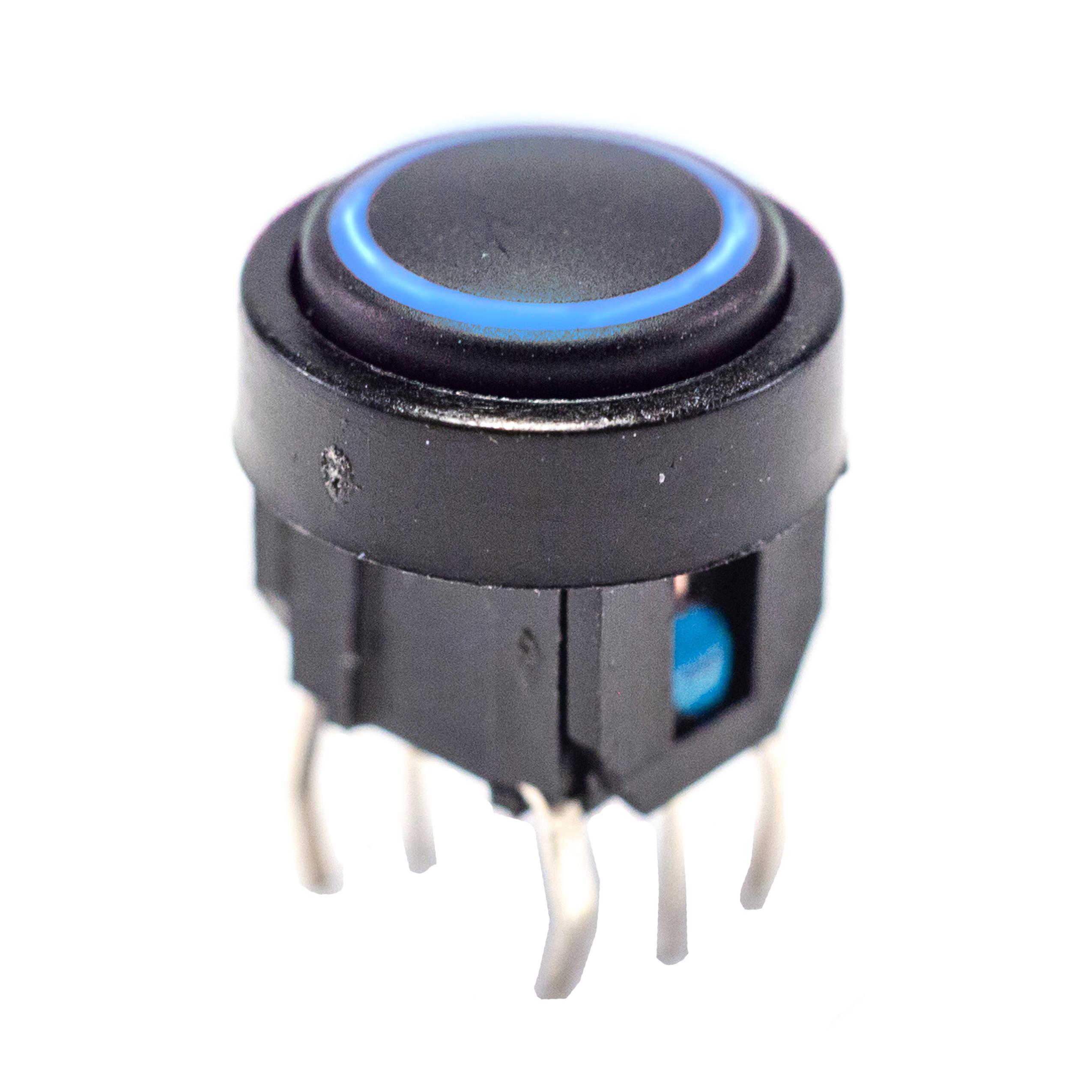

E-Switch TL1220R2BBBBHALO

TL1220R2BBBBHALO E-Switch
E-Switch

Product Information

Operating Force:
180gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
500,000 Cycles
Actuator Height off PCB, Vertical:
9.90mm
edacadModel:
TL1220R2BBBBHALO Models
edacadModelUrl:
/en/models/16017490
Illumination Type, Color:
LED, Blue
Outline:
7.60mm x 6.00mm
Package:
Tray
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
TL1220
Switch Travel:
0.20mm
Actuator Type:
Round Button
Illumination:
Illuminated
Illumination Voltage (Nominal):
3.5 VDC
Actuator Material:
-
Base Product Number:
TL1220
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL1220R2BBBBHALO. It has a 180gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 500,000 cycles. Features 9.90mm actuator vertical height off PCB. It is supplied with led, blue illumination. The given outline of the product is 7.60mm x 6.00mm. It is shipped in tray package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 12 weeks standard lead time. The product is available in through hole configuration. The product tl1220, is a highly preferred choice for users. The product has a switching travel of 0.20mm. The product carries round button actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 3.5 vdc. Moreover, it corresponds to tl1220, a base product number of the product. The product is designated with the ear99 code number.
