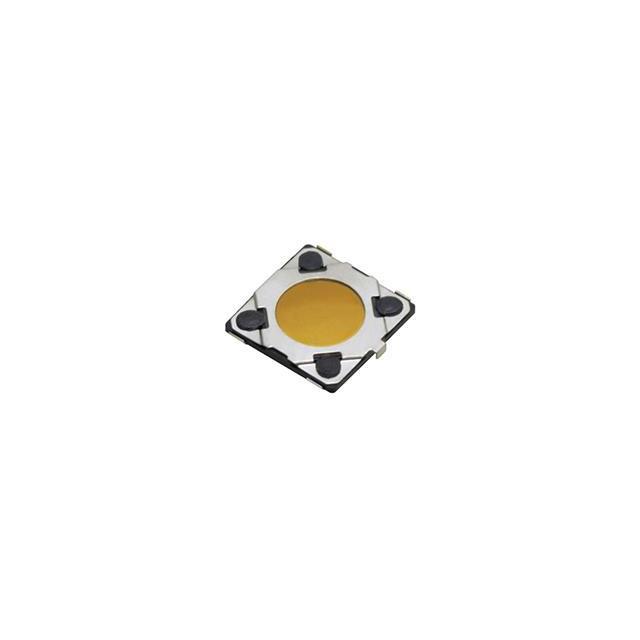

Panasonic Electronic Components EVQ-7P6B40

EVQ-7P6B40 Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Operating Force:
102gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
J Lead
Actuator Height off PCB, Vertical:
0.43mm
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
1,000,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
4.10mm x 4.10mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.02A @ 15VDC
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
EVQ-7P6
Switch Travel:
0.15mm
Actuator Type:
Flush
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
EVQ-7P
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is EVQ-7P6B40. It has a 102gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has j lead terminal style. Features 0.43mm actuator vertical height off PCB. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 1,000,000 cycles. In addition, it is reach unaffected. The given outline of the product is 4.10mm x 4.10mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.02a @ 15vdc. The product is available in surface mount configuration. The product evq-7p6, is a highly preferred choice for users. The product has a switching travel of 0.15mm. The product carries flush actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to evq-7p, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Mult DEV EOL 22/Jan/2024(PCN Obsolescence/ EOL)
