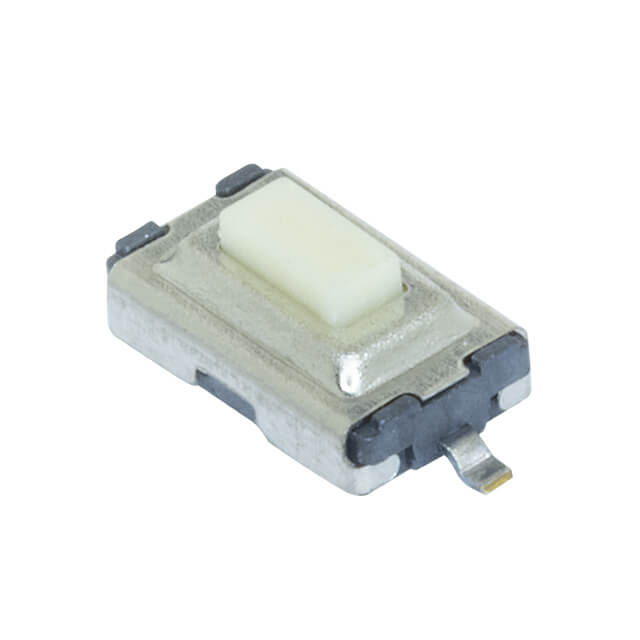

CUI Devices TS09-63-25-WT-260-SMT-TR

TS09-63-25-WT-260-SMT-TR CUI Devices
CUI Devices

Product Information

Operating Force:
260gf
HTSUS:
8536.50.9031
RoHS Status:
RoHS Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
2.50mm
Operating Temperature:
-30°C ~ 80°C
Actuator Orientation:
Top Actuated
REACH Status:
REACH Unaffected
edacadModel:
TS09-63-25-WT-260-SMT-TR Models
edacadModelUrl:
/en/models/15839064
Illumination Type, Color:
-
Outline:
6.10mm x 3.70mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
Not Applicable
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
20 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
TS09
Packaging:
Tape & Reel (TR)
Actuator Type:
Rectangular Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Base Product Number:
TS09-63
ECCN:
EAR99
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is TS09-63-25-WT-260-SMT-TR. It has a 260gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs compliant. Moreover, it has gull wing terminal style. Features 2.50mm actuator vertical height off PCB. The product has -30°c ~ 80°c operating temperature range. The actuator is adjusted at top actuated. In addition, it is reach unaffected. The given outline of the product is 6.10mm x 3.70mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is not applicable. It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 20 weeks standard lead time. The product is available in surface mount configuration. The product ts09, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product carries rectangular button actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to ts09-63, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
TS09(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TS09-63-25-WT-260-SMT-TR on website for other similar products.
We accept all major payment methods for all products including ET22751789. Please check your shopping cart at the time of order.
You can order CUI Devices brand products with TS09-63-25-WT-260-SMT-TR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of CUI Devices TS09-63-25-WT-260-SMT-TR. You can also check on our website or by contacting our customer support team for further order details on CUI Devices TS09-63-25-WT-260-SMT-TR.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET22751789 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "CUI Devices" products on our website by using Enrgtech's Unique Manufacturing Part Number ET22751789.
Yes. We ship TS09-63-25-WT-260-SMT-TR Internationally to many countries around the world.
