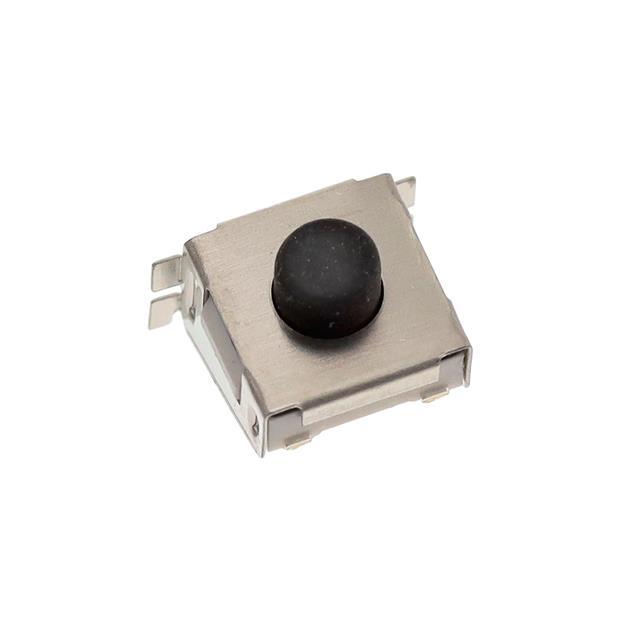

TE Connectivity ALCOSWITCH Switches 1571407-1

1571407-1 TE Connectivity ALCOSWITCH Switches
TE Connectivity ALCOSWITCH Switches

Product Information

Operating Force:
260gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
SMD (SMT) Tab
Actuator Height off PCB, Vertical:
-
Operating Temperature:
-35°C ~ 85°C
Actuator Orientation:
Side Actuated
Mechanical Life:
1,000,000 Cycles
REACH Status:
Vendor Undefined
edacadModel:
1571407-1 Models
edacadModelUrl:
/en/models/2400332
Illumination Type, Color:
-
Outline:
6.40mm x 6.30mm
Package:
Bag
Switch Function:
Off-Mom
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 24VDC
standardLeadTime:
33 Weeks
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Sealed - Fully
Mounting Type:
Surface Mount, Right Angle
Series:
-
Switch Travel:
0.35mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Silicone Rubber
Base Product Number:
1571407
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity ALCOSWITCH Switches. The manufacturer part number is 1571407-1. It has a 260gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has smd (smt) tab terminal style. The product has -35°c ~ 85°c operating temperature range. The actuator is adjusted at side actuated. The product also provide mechanical stability with 1,000,000 cycles. In addition, it is vendor undefined. The given outline of the product is 6.40mm x 6.30mm. It is shipped in bag package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 24vdc. It has a long 33 weeks standard lead time. It is IP rated with ip67 - dust tight, waterproof. The splendid features of the product include sealed - fully. The product is available in surface mount, right angle configuration. The product has a switching travel of 0.35mm. The product carries standard actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy silicone rubber material. Moreover, it corresponds to 1571407, a base product number of the product. The product is designated with the ear99 code number.
