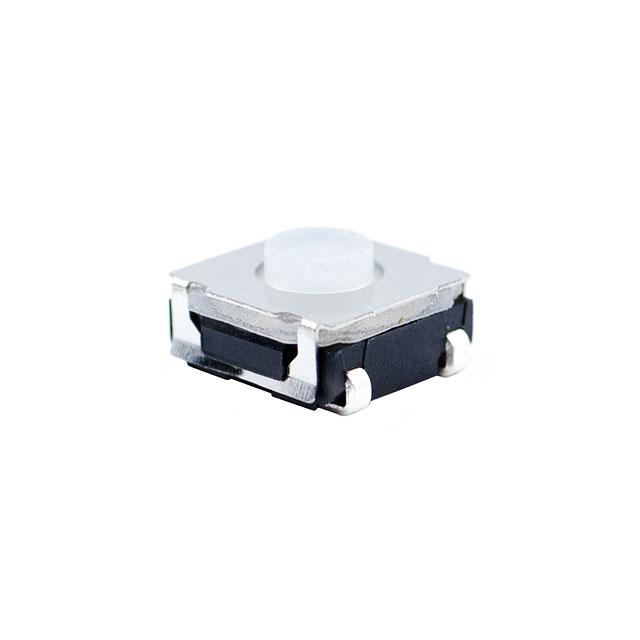

E-Switch TL3145AF180QJ

TL3145AF180QJ E-Switch
E-Switch

Product Information

Operating Force:
180gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
J Lead
Actuator Height off PCB, Vertical:
3.50mm
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
3,000,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
TL3145AF180QJ Models
edacadModelUrl:
/en/models/12749789
Illumination Type, Color:
-
Outline:
6.45mm x 6.45mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
15 Weeks
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
-
Mounting Type:
Surface Mount
Series:
TL3145
Switch Travel:
0.15mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
TL3145
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL3145AF180QJ. It has a 180gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has j lead terminal style. Features 3.50mm actuator vertical height off PCB. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 3,000,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.45mm x 6.45mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 15 weeks standard lead time. It is IP rated with ip67 - dust tight, waterproof. The product is available in surface mount configuration. The product tl3145, is a highly preferred choice for users. The product has a switching travel of 0.15mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to tl3145, a base product number of the product. The product is designated with the ear99 code number.
