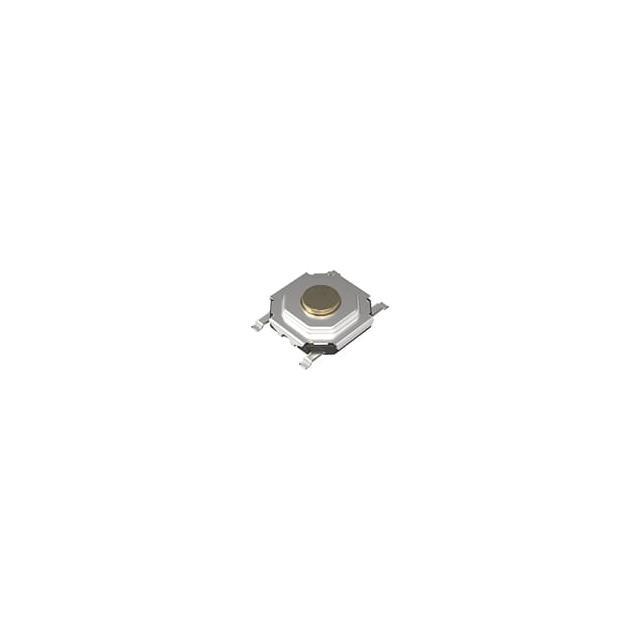

Stem Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 1.5mm

SKQGADE010 Stem Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 1.5mm
SKQGADE010
Alps Alpine

Product Information

Operating Force:
2.55 N
Actuator Length:
1.5mm
Dimensions:
5.2 x 5.2mm
Mounting Type:
Surface Mount
Voltage Rating:
12V dc
Contact Current Rating:
50 mA @ 12 V dc
Minimum Operating Temperature:
-30°C
Operating Temperature Range:
-30 → +85°C
Height:
1.5mm
Width:
5.2mm
Length:
5.2mm
Actuator Type:
Stem
Mechanical Life:
100000Cycles
Contact Configuration:
SPST
Maximum Operating Temperature:
+85°C
Terminal Type:
Surface Mount
Switch Operation:
Momentary
Operating Force:
260gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
1.50mm
Operating Temperature:
-40°C ~ 90°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
5.20mm x 5.20mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
16 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
SKQG
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
SKQGA
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Stem Tactile Switch Single Pole Single Throw (SPST) 50 mA @ 12 V dc 1.5mm manufactured by Alps Alpine. The manufacturer part number is SKQGADE010. It has a 2.55 n of operating force. The actuator is a 1.5mm long. The given dimensions of the product include 5.2 x 5.2mm. The product is available in surface mount configuration. Moreover, the product has a nominal 12v dc voltage rating. The rated contact current is 50 ma @ 12 v dc. Whereas, the minimum operating temperature of the product is -30°c. The product has -30 → +85°c of operating temperature range. In addition, the height is 1.5mm. Furthermore, the product is 5.2mm wide. Its accurate length is 5.2mm. The product carries stem actuator. The product also provide mechanical stability with 100000cycles. The contact is equipped with spst configuration. It has a maximum operating temperature of +85°c. The terminal is a surface mount type. It provides momentary switch operation. It has a 260gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 1.50mm actuator vertical height off PCB. The product has -40°c ~ 90°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 5.20mm x 5.20mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 16 weeks standard lead time. The product skqg, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to skqga, a base product number of the product. The product is designated with the ear99 code number.
