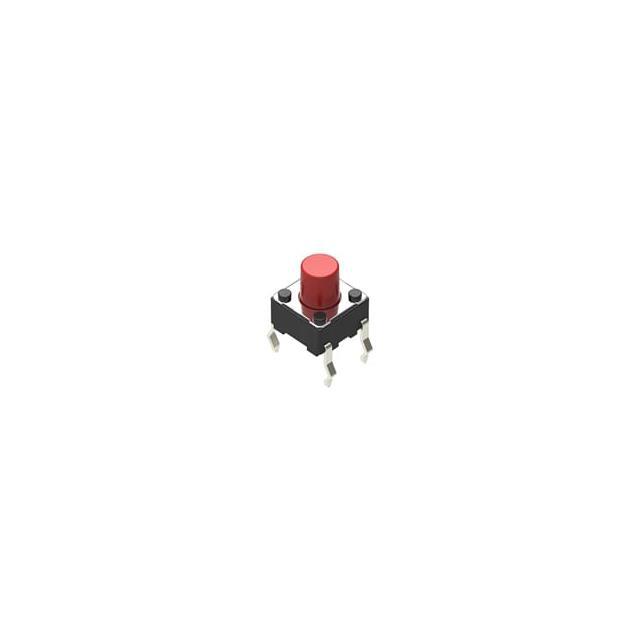

Red Stem Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 0.25mm

SKHHBYA010 Red Stem Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 0.25mm
SKHHBYA010
Alps Alpine

Product Information

Operating Force:
2.55 N
Actuator Colour:
Red
Dimensions:
6 x 6 x 7mm
Operating Temperature Range:
-30 → +85°C
Contact Current Rating:
50 mA @ 12 V dc
Minimum Operating Temperature:
-30°C
Height:
7mm
Actuator Type:
Stem
Actuator Length:
0.25mm
Mechanical Life:
200000Cycles
Contact Configuration:
Single Pole Single Throw (SPST)
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Switch Operation:
Momentary
Operating Force:
260gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 90°C
Actuator Orientation:
Top Actuated
Mechanical Life:
200,000 Cycles
Actuator Height off PCB, Vertical:
7.00mm
Illumination Type, Color:
-
Outline:
6.00mm x 6.00mm
Package:
Bulk
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
18 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
SKHH
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
SKHHB
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Red Stem Tactile Switch Single Pole Single Throw (SPST) 50 mA @ 12 V dc 0.25mm manufactured by Alps Alpine. The manufacturer part number is SKHHBYA010. It has a 2.55 n of operating force. The actuator has an adorable red colour. The given dimensions of the product include 6 x 6 x 7mm. The product has -30 → +85°c of operating temperature range. The rated contact current is 50 ma @ 12 v dc. Whereas, the minimum operating temperature of the product is -30°c. In addition, the height is 7mm. The product carries stem actuator. The actuator is a 0.25mm long. The product also provide mechanical stability with 200000cycles. The contact is equipped with single pole single throw (spst) configuration. It has a maximum operating temperature of +85°c. The terminal is a through hole type. It provides momentary switch operation. It has a 260gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The product has -40°c ~ 90°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 200,000 cycles. Features 7.00mm actuator vertical height off PCB. The given outline of the product is 6.00mm x 6.00mm. It is shipped in bulk package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 18 weeks standard lead time. The product is available in through hole configuration. The product skhh, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to skhhb, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
SKHH Series Tact Switch(Technical Reference)
pdf icon
Spec Sheet(Datasheets)
