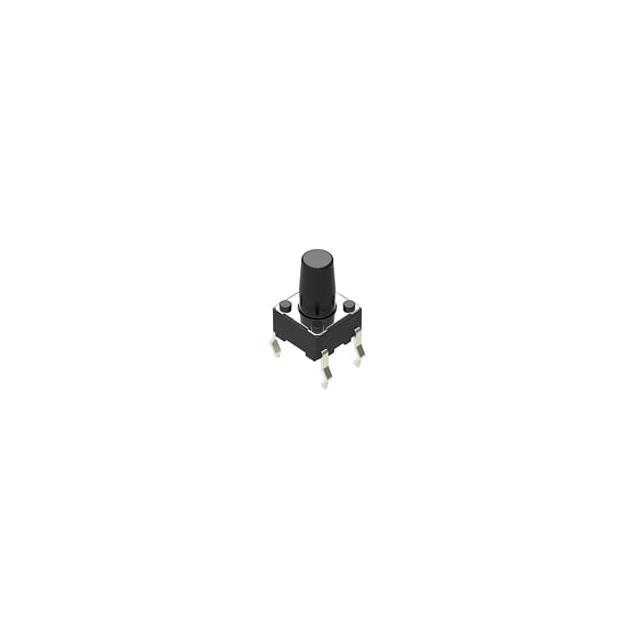

Black Stem Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 9.5mm

SKHHANA010 Black Stem Tactile Switch, Single Pole Single Throw (SPST) 50 mA @ 12 V dc 9.5mm
SKHHANA010
SKHHANA010
Alps Alpine

Product Information

Operating Force:
0.98 N
Actuator Colour:
Black
Dimensions:
6 x 6 x 9.5mm
Mounting Type:
Surface Mount
Voltage Rating:
12V dc
Contact Current Rating:
50 mA @ 12 V dc
Minimum Operating Temperature:
-30°C
Operating Temperature Range:
-30 → +85°C
Height:
9.5mm
Width:
6mm
Length:
6mm
Actuator Type:
Stem
Actuator Length:
9.5mm
Mechanical Life:
1000000Cycles
Contact Configuration:
SPST
Maximum Operating Temperature:
+85°C
Terminal Type:
Through Hole
Switch Operation:
Momentary
Operating Force:
100gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 90°C
Actuator Orientation:
Top Actuated
Actuator Height off PCB, Vertical:
9.50mm
Illumination Type, Color:
-
Outline:
6.00mm x 6.00mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
18 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
SKHH
Packaging:
Bulk
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Base Product Number:
SKHHA
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Black Stem Tactile Switch Single Pole Single Throw (SPST) 50 mA @ 12 V dc 9.5mm manufactured by Alps Alpine. The manufacturer part number is SKHHANA010. It has a 0.98 n of operating force. The actuator has an adorable black colour. The given dimensions of the product include 6 x 6 x 9.5mm. The product is available in surface mount configuration. Moreover, the product has a nominal 12v dc voltage rating. The rated contact current is 50 ma @ 12 v dc. Whereas, the minimum operating temperature of the product is -30°c. The product has -30 → +85°c of operating temperature range. In addition, the height is 9.5mm. Furthermore, the product is 6mm wide. Its accurate length is 6mm. The product carries stem actuator. The actuator is a 9.5mm long. The product also provide mechanical stability with 1000000cycles. The contact is equipped with spst configuration. It has a maximum operating temperature of +85°c. The terminal is a through hole type. It provides momentary switch operation. It has a 100gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The product has -40°c ~ 90°c operating temperature range. The actuator is adjusted at top actuated. Features 9.50mm actuator vertical height off PCB. The given outline of the product is 6.00mm x 6.00mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 18 weeks standard lead time. The product is available in through hole configuration. The product skhh, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to skhha, a base product number of the product. The product is designated with the ear99 code number.
