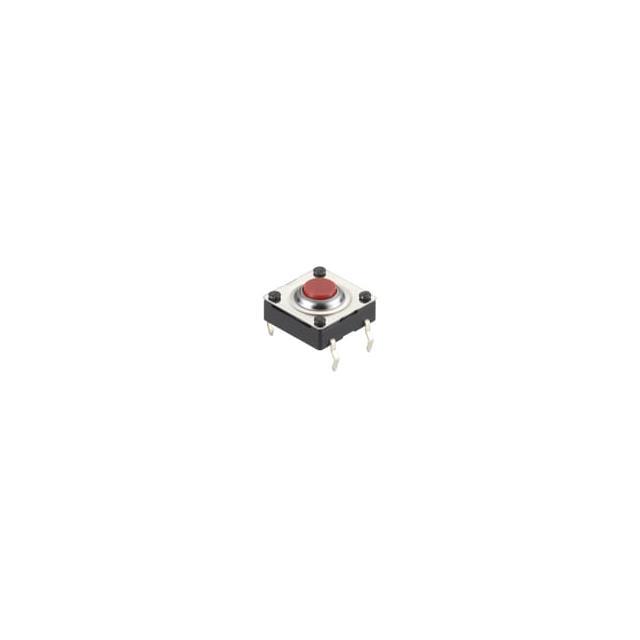

Red Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 0.85mm Snap-In

SKQBASA010 Red Button Tactile Switch, Single Pole Single Throw (SPST) 50 mA 0.85mm Snap-In
SKQBASA010
Alps Alpine

Product Information

Operating Force:
2.55 N
Actuator Colour:
Red
Dimensions:
10 x 10mm
Mounting Type:
Snap-In
Voltage Rating:
12V dc
Contact Current Rating:
50 mA
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +90°C
Contact Configuration:
Single Pole Single Throw (SPST)
Width:
10mm
Length:
10mm
Actuator Type:
Button
Actuator Length:
0.85mm
Maximum Operating Temperature:
+90°C
Terminal Type:
Pc Pin
Switch Operation:
Momentary
Operating Force:
260gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Operating Temperature:
-40°C ~ 90°C
Actuator Orientation:
Top Actuated
Actuator Height off PCB, Vertical:
5.00mm
Illumination Type, Color:
-
Outline:
10.00mm x 10.00mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
18 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
SKQB
Packaging:
Bulk
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Base Product Number:
SKQBA
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Red Button Tactile Switch Single Pole Single Throw (SPST) 50 mA 0.85mm Snap-In manufactured by Alps Alpine. The manufacturer part number is SKQBASA010. It has a 2.55 n of operating force. The actuator has an adorable red colour. The given dimensions of the product include 10 x 10mm. The product is available in snap-in configuration. Moreover, the product has a nominal 12v dc voltage rating. The rated contact current is 50 ma. Whereas, the minimum operating temperature of the product is -40°c. The product has -40 → +90°c of operating temperature range. The contact is equipped with single pole single throw (spst) configuration. Furthermore, the product is 10mm wide. Its accurate length is 10mm. The product carries button actuator. The actuator is a 0.85mm long. It has a maximum operating temperature of +90°c. The terminal is a pc pin type. It provides momentary switch operation. It has a 260gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. The product has -40°c ~ 90°c operating temperature range. The actuator is adjusted at top actuated. Features 5.00mm actuator vertical height off PCB. The given outline of the product is 10.00mm x 10.00mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 18 weeks standard lead time. The product is available in through hole configuration. The product skqb, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to skqba, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
SKQB Series Datasheet_en(Technical Reference)
