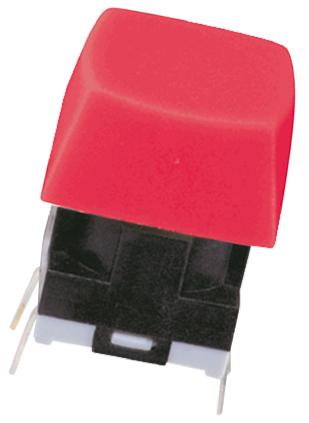

IP67 Tactile Switch, SPST 125 mA@ 24 V dc 3.3mm

JB-15HANP2-KRS IP67 Tactile Switch, SPST 125 mA@ 24 V dc 3.3mm
NKK Switches

Product Information

Operating Force:
2.65 N
Actuator Length:
3.3mm
Minimum Operating Temperature:
-25°C
IP Rating:
IP67
Contact Current Rating:
125 mA@ 24 V dc
Operating Temperature Range:
-25 → +70°C
Contact Configuration:
SPST
Actuator Type:
Tactile
Mechanical Life:
1000000Operations
Switch Operation:
Off-(On)
Maximum Operating Temperature:
+70°C
Terminal Type:
Through Hole
Contact Material:
Silver Plated Brass (Stationary)' Silver Plated Beryllium Copper (Movable)
RoHs Compliant
Checking for live stock

This is IP67 Tactile Switch SPST 125 mA@ 24 V dc 3.3mm manufactured by NKK Switches. The manufacturer part number is JB-15HANP2-KRS. It has a 2.65 n of operating force. The actuator is a 3.3mm long. Whereas, the minimum operating temperature of the product is -25°c. It is IP rated with ip67. The rated contact current is 125 ma@ 24 v dc. The product has -25 → +70°c of operating temperature range. The contact is equipped with spst configuration. The product carries tactile actuator. The product also provide mechanical stability with 1000000operations. It provides off-(on) switch operation. It has a maximum operating temperature of +70°c. The terminal is a through hole type. The product is made from sturdy silver plated brass (stationary)' silver plated beryllium copper (movable) materials.

pdf icon
JB Series_E(Technical Reference)
