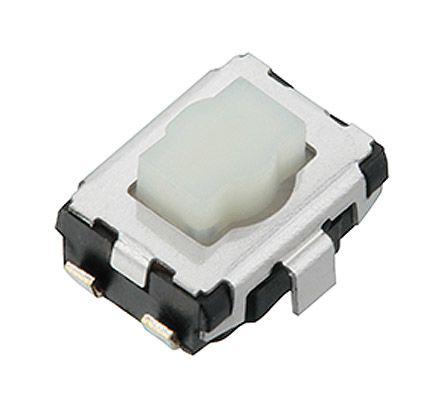

White Push Plate Tactile Switch, SPST 20 mA @ 15 V dc 2.6mm Surface Mount

EVQP9W02W White Push Plate Tactile Switch, SPST 20 mA @ 15 V dc 2.6mm Surface Mount
Panasonic

Product Information

Actuator Length:
2.6mm
Actuator Colour:
White
Dimensions:
4.7 x 3.5 x 2.5mm
Mounting Type:
Surface Mount
Voltage Rating:
2 → 15V dc
Contact Current Rating:
20 mA @ 15 V dc
Minimum Operating Temperature:
-40°C
Operating Temperature Range:
-40 → +85°C
Height:
2.5mm
Width:
3.5mm
Length:
4.7mm
Operating Force:
4 N
Actuator Type:
Push Plate
Terminal Type:
J Bend
Mechanical Life:
200000Operations
Contact Configuration:
Single Pole Single Throw (SPST)
Maximum Operating Temperature:
+85°C
Switch Operation:
Momentary
RoHs Compliant
Checking for live stock

This is White Push Plate Tactile Switch SPST 20 mA @ 15 V dc 2.6mm Surface Mount manufactured by Panasonic. The manufacturer part number is EVQP9W02W. The actuator is a 2.6mm long. The actuator has an adorable white colour. The given dimensions of the product include 4.7 x 3.5 x 2.5mm. The product is available in surface mount configuration. Moreover, the product has a nominal 2 → 15v dc voltage rating. The rated contact current is 20 ma @ 15 v dc. Whereas, the minimum operating temperature of the product is -40°c. The product has -40 → +85°c of operating temperature range. In addition, the height is 2.5mm. Furthermore, the product is 3.5mm wide. Its accurate length is 4.7mm. It has a 4 n of operating force. The product carries push plate actuator. The terminal is a j bend type. The product also provide mechanical stability with 200000operations. The contact is equipped with single pole single throw (spst) configuration. It has a maximum operating temperature of +85°c. It provides momentary switch operation.

pdf icon
4.7mm SMD Light Touch Switch Datasheet(Technical Reference)
