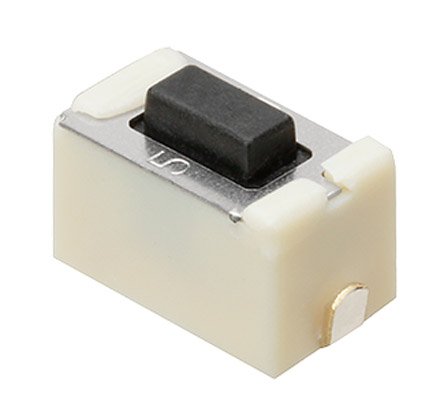

Natural Push Plate Tactile Switch, SPST 20 mA @ 15 V dc 3mm Surface Mount

EVQPNF04M Natural Push Plate Tactile Switch, SPST 20 mA @ 15 V dc 3mm Surface Mount
Panasonic

Product Information

Operating Force:
1.6 N
Actuator Colour:
Natural
Dimensions:
6 x 3.5 x 4.30mm
Mounting Type:
Surface Mount
Voltage Rating:
2 → 15V dc
Contact Current Rating:
20 mA @ 15 V dc
Minimum Operating Temperature:
-30°C
Operating Temperature Range:
-30 → +85°C
Height:
4.3mm
Width:
3.5mm
Length:
6mm
Actuator Type:
Push Plate
Actuator Length:
3mm
Mechanical Life:
500000Operations
Contact Configuration:
SPST
Maximum Operating Temperature:
+85°C
Terminal Type:
J Bend
Switch Operation:
Momentary
RoHs Compliant
Checking for live stock

This is Natural Push Plate Tactile Switch SPST 20 mA @ 15 V dc 3mm Surface Mount manufactured by Panasonic. The manufacturer part number is EVQPNF04M. It has a 1.6 n of operating force. The actuator has an adorable natural colour. The given dimensions of the product include 6 x 3.5 x 4.30mm. The product is available in surface mount configuration. Moreover, the product has a nominal 2 → 15v dc voltage rating. The rated contact current is 20 ma @ 15 v dc. Whereas, the minimum operating temperature of the product is -30°c. The product has -30 → +85°c of operating temperature range. In addition, the height is 4.3mm. Furthermore, the product is 3.5mm wide. Its accurate length is 6mm. The product carries push plate actuator. The actuator is a 3mm long. The product also provide mechanical stability with 500000operations. The contact is equipped with spst configuration. It has a maximum operating temperature of +85°c. The terminal is a j bend type. It provides momentary switch operation.

pdf icon
EVQPE1/EVQPN/EVQ5P Light Touch Switch Datasheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search EVQPNF04M on website for other similar products.
We accept all major payment methods for all products including ET16752544. Please check your shopping cart at the time of order.
You can order Panasonic brand products with EVQPNF04M directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Natural Push Plate Tactile Switch, SPST 20 mA @ 15 V dc 3mm Surface Mount. You can also check on our website or by contacting our customer support team for further order details on Natural Push Plate Tactile Switch, SPST 20 mA @ 15 V dc 3mm Surface Mount.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16752544 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Panasonic" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16752544.
Yes. We ship EVQPNF04M Internationally to many countries around the world.
