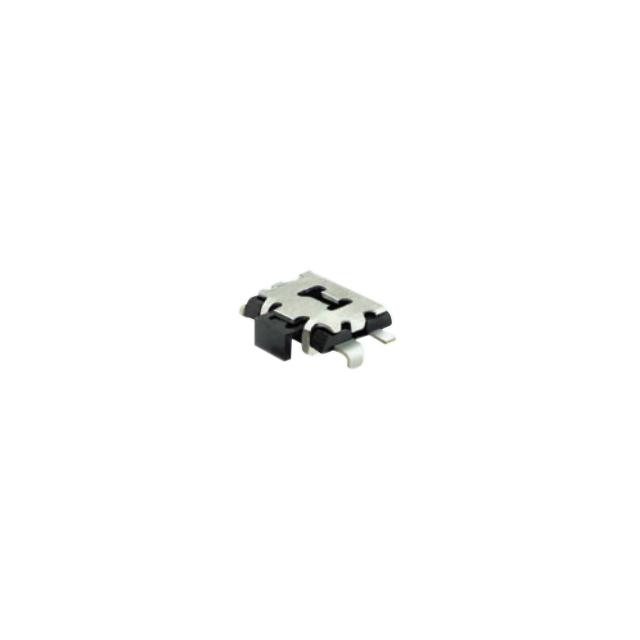

CTS Electrocomponents 226DM1SAAR

226DM1SAAR CTS Electrocomponents
CTS Electrocomponents

Product Information

Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
-
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Side Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
3.50mm x 2.90mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
3.50mm
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
Ingress Protection:
-
Features:
Tactile Feedback
Mounting Type:
Surface Mount, Right Angle
Series:
226D
Switch Travel:
0.20mm
Actuator Type:
Rectangular Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
226DM1
ECCN:
EAR99
Checking for live stock

This is manufactured by CTS Electrocomponents. The manufacturer part number is 226DM1SAAR. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at side actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 3.50mm x 2.90mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. The right angle actuator length is 3.50mm. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. The splendid features of the product include tactile feedback. The product is available in surface mount, right angle configuration. The product 226d, is a highly preferred choice for users. The product has a switching travel of 0.20mm. The product carries rectangular button actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to 226dm1, a base product number of the product. The product is designated with the ear99 code number.
