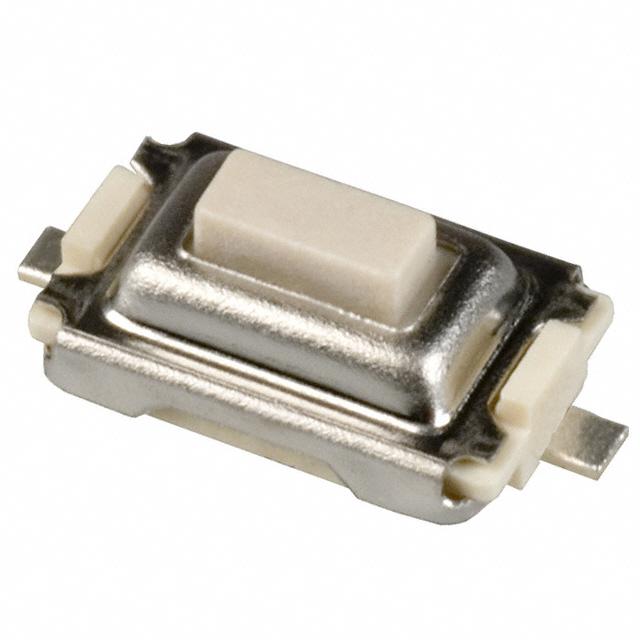

Panasonic Electronic Components EVQ-PPHA25

EVQ-PPHA25 Panasonic Electronic Components
Panasonic Electronic Components

Product Information

Operating Force:
240gf
HTSUS:
8536.50.9031
Termination Style:
Gull Wing
Operating Temperature:
-40°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
30,000 Cycles
Actuator Height off PCB, Vertical:
2.50mm
Illumination Type, Color:
-
Outline:
6.00mm x 3.50mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
Ingress Protection:
Dust Proof
Features:
-
Mounting Type:
Surface Mount
Series:
EVQPP
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
EVQ-PP
ECCN:
EAR99
Checking for live stock

This is manufactured by Panasonic Electronic Components. The manufacturer part number is EVQ-PPHA25. It has a 240gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. Moreover, it has gull wing terminal style. The product has -40°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 30,000 cycles. Features 2.50mm actuator vertical height off PCB. The given outline of the product is 6.00mm x 3.50mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It is IP rated with dust proof. The product is available in surface mount configuration. The product evqpp, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to evq-pp, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
EVQ-PP Series 13/Dec/2007(PCN Obsolescence/ EOL)
pdf icon
EVQ-PP(Datasheets)
