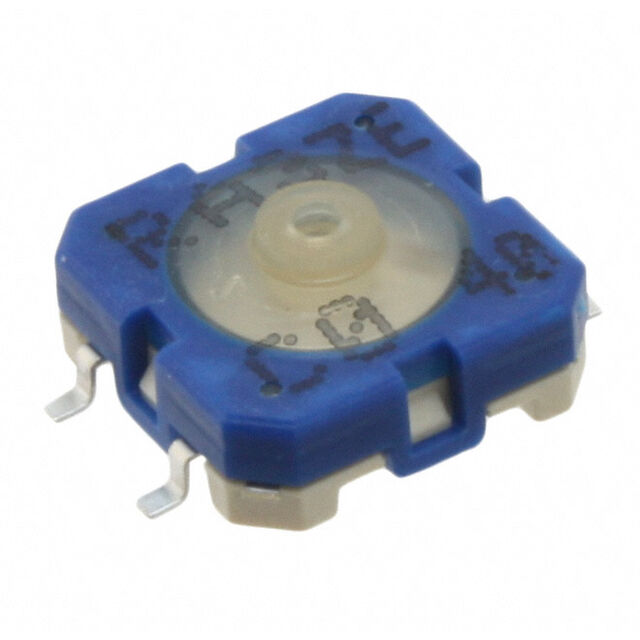

RAFI USA 1.14001.9200000

1-14001-9200000 RAFI USA 1.14001.9200000
RAFI USA

Product Information

Operating Force:
970gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Operating Temperature:
-40°C ~ 90°C
Actuator Orientation:
Top Actuated
Mechanical Life:
1,000,000 Cycles
title:
1.14001.9200000
Actuator Height off PCB, Vertical:
5.05mm
Illumination Type, Color:
-
Outline:
12.00mm x 12.00mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.1A @ 35VAC/DC
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
RACON 12
Packaging:
Tape & Reel (TR)
Switch Travel:
0.73mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
-
Base Product Number:
1.14001
ECCN:
EAR99
Checking for live stock

This is manufactured by RAFI USA. The manufacturer part number is 1.14001.9200000. It has a 970gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. The product has -40°c ~ 90°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 1,000,000 cycles. Features 5.05mm actuator vertical height off PCB. The given outline of the product is 12.00mm x 12.00mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.1a @ 35vac/dc. The product is available in surface mount configuration. The product racon 12, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product has a switching travel of 0.73mm. The product carries standard actuator. Is this product illuminated? non-illuminated. Moreover, it corresponds to 1.14001, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Obsolete 14/OCT/2020(PCN Obsolescence/ EOL)
pdf icon
RACON Accessories Catalog(Datasheets)
pdf icon
1.14.001.920 0000(Datasheets)
pdf icon
Racon PCB Tactile Switch Catalog(Datasheets)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 1.14001.9200000 on website for other similar products.
We accept all major payment methods for all products including ET16356100. Please check your shopping cart at the time of order.
You can order RAFI USA brand products with 1.14001.9200000 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Tactile Switches category are shipped in lowest possible time.
You will get a confirmation email regarding your order of RAFI USA 1.14001.9200000. You can also check on our website or by contacting our customer support team for further order details on RAFI USA 1.14001.9200000.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16356100 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "RAFI USA" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16356100.
Yes. We ship 1.14001.9200000 Internationally to many countries around the world.
