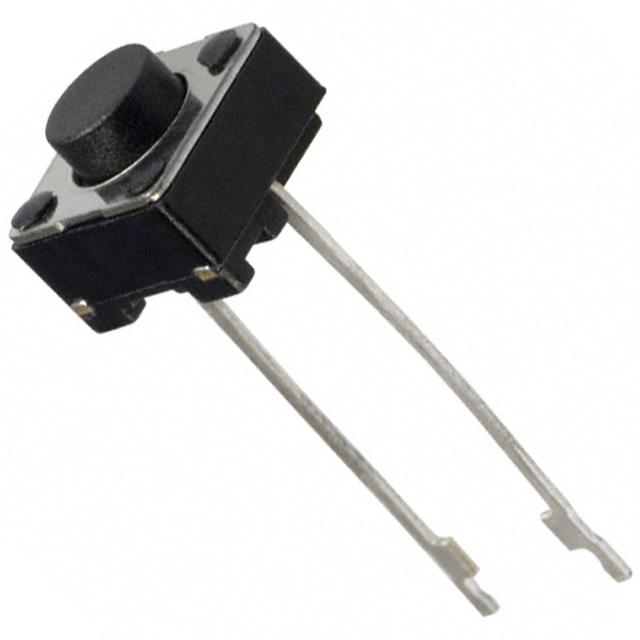

E-Switch TL59AF160Q

TL59AF160Q E-Switch
E-Switch

Product Information

Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
PC Pin
Actuator Height off PCB, Vertical:
5.00mm
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
TL59AF160Q Models
edacadModelUrl:
/en/models/390534
Illumination Type, Color:
-
Outline:
6.20mm x 6.20mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
14 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Through Hole
Series:
TL59
Packaging:
Cut Tape (CT)
Switch Travel:
0.25mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polybutylene Terephthalate (PBT)
Base Product Number:
TL59A
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL59AF160Q. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has pc pin terminal style. Features 5.00mm actuator vertical height off PCB. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.20mm x 6.20mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 14 weeks standard lead time. The product is available in through hole configuration. The product tl59, is a highly preferred choice for users. In addition, cut tape (ct) is the available packaging type of the product. The product has a switching travel of 0.25mm. The product carries standard actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polybutylene terephthalate (pbt) material. Moreover, it corresponds to tl59a, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
TL59 Series RoHS Cert of Compliance(Environmental Information)
pdf icon
E-Switch RoHS 3 Cert(Environmental Information)
pdf icon
TL59, TL58 Series Datasheet(Datasheets)
pdf icon
TL59AF160Q Drawing(Product Drawings)
