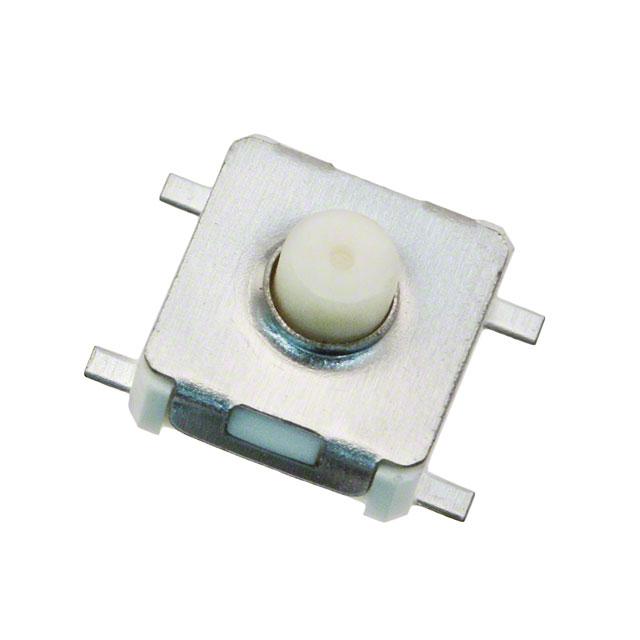

E-Switch TL3350BF100Q

TL3350BF100Q E-Switch
E-Switch

Product Information

Operating Force:
100gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
3.80mm
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
10,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
6.50mm x 6.20mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO x 2
Contact Rating @ Voltage:
0.02A @ 30VDC
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
TL3350
Switch Travel:
0.30mm, 0.55mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyamide (PA), Nylon
Base Product Number:
TL3350
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL3350BF100Q. It has a 100gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 3.80mm actuator vertical height off PCB. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 10,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.50mm x 6.20mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no x 2 circuit. The given contact rating of the product and its voltage includes 0.02a @ 30vdc. The product is available in surface mount configuration. The product tl3350, is a highly preferred choice for users. The product has a switching travel of 0.30mm, 0.55mm. The product carries standard actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyamide (pa), nylon material. Moreover, it corresponds to tl3350, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
TL3350 Series Datasheet(Datasheets)
pdf icon
TL3350BF100Q Drawing(Product Drawings)
pdf icon
TL3350 Series RoHS Cert of Compliance(Environmental Information)
