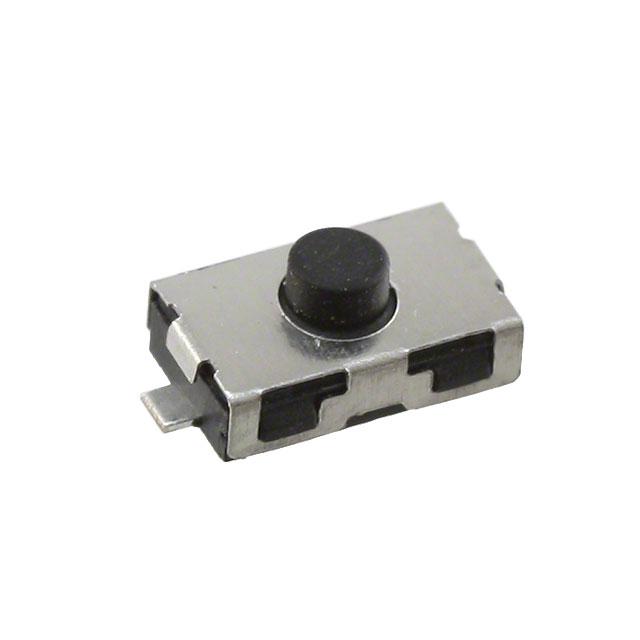

E-Switch TL3310AF120QG

TL3310AF120QG E-Switch
E-Switch

Product Information

Operating Force:
120gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
2.50mm
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Top Actuated
Mechanical Life:
100,000 Cycles
REACH Status:
REACH Unaffected
Illumination Type, Color:
-
Outline:
6.00mm x 3.80mm
Package:
Tape & Reel (TR)
Switch Function:
On-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NC
Contact Rating @ Voltage:
0.05A @ 50VDC
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
TL3310
Switch Travel:
0.30mm
Actuator Type:
Standard
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Silicone Rubber
Base Product Number:
TL3310
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL3310AF120QG. It has a 120gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 2.50mm actuator vertical height off PCB. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.00mm x 3.80mm. It is shipped in tape & reel (tr) package . It is designed as a on-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-nc circuit. The given contact rating of the product and its voltage includes 0.05a @ 50vdc. The product is available in surface mount configuration. The product tl3310, is a highly preferred choice for users. The product has a switching travel of 0.30mm. The product carries standard actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy silicone rubber material. Moreover, it corresponds to tl3310, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
TL3310 Series Datasheet(Datasheets)
