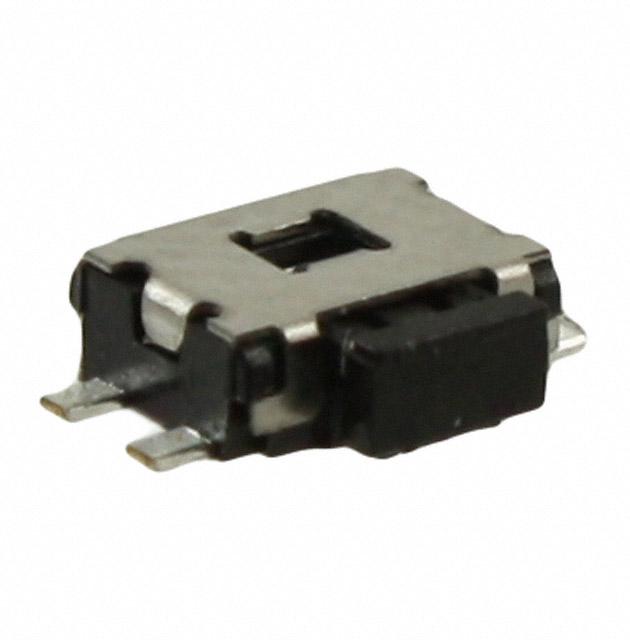

E-Switch TL1014BF180QG

TL1014BF180QG E-Switch
E-Switch

Product Information

Operating Force:
180gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
-
Operating Temperature:
-20°C ~ 70°C
Actuator Orientation:
Side Actuated
Mechanical Life:
100,000 Cycles
title:
TL1014BF180QG
REACH Status:
REACH Unaffected
edacadModel:
TL1014BF180QG Models
edacadModelUrl:
/en/models/1003786
Illumination Type, Color:
-
Outline:
6.40mm x 3.50mm
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
Ingress Protection:
-
Features:
Board Guide
Mounting Type:
Surface Mount, Right Angle
Series:
TL1014
Packaging:
Tape & Reel (TR)
Switch Travel:
0.30mm
Actuator Type:
Rectangular Button
Illumination:
Non-Illuminated
Illumination Voltage (Nominal):
-
Actuator Material:
Polyamide (PA46), Nylon 4/6
Base Product Number:
TL1014
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL1014BF180QG. It has a 180gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. The product has -20°c ~ 70°c operating temperature range. The actuator is adjusted at side actuated. The product also provide mechanical stability with 100,000 cycles. In addition, it is reach unaffected. The given outline of the product is 6.40mm x 3.50mm. It is designed as a off-mom switching function. Its typical moisture sensitivity level is 1 (unlimited). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. The splendid features of the product include board guide. The product is available in surface mount, right angle configuration. The product tl1014, is a highly preferred choice for users. In addition, tape & reel (tr) is the available packaging type of the product. The product has a switching travel of 0.30mm. The product carries rectangular button actuator. Is this product illuminated? non-illuminated. The actuator is designed from sturdy polyamide (pa46), nylon 4/6 material. Moreover, it corresponds to tl1014, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
TL1014 Series Datasheet(Datasheets)
pdf icon
TL1014AF180QG Drawing(Product Drawings)
