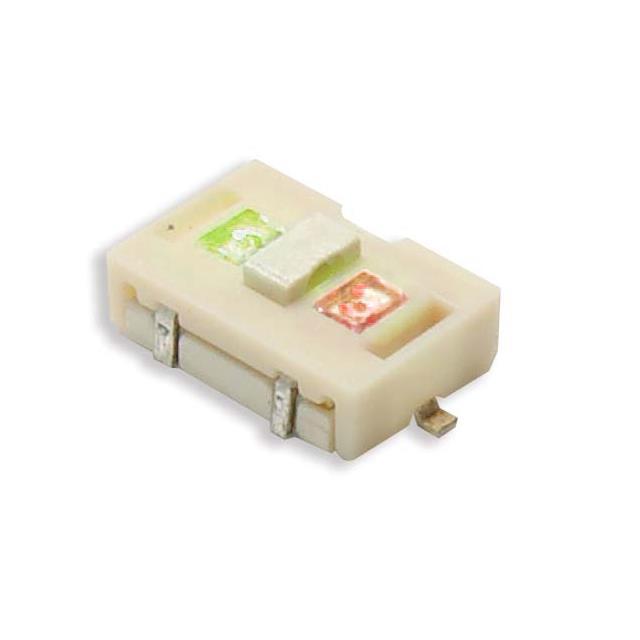

E-Switch TL3200AF160RGQ

TL3200AF160RGQ E-Switch
E-Switch

Product Information

Operating Force:
160gf
HTSUS:
8536.50.9031
RoHS Status:
ROHS3 Compliant
Termination Style:
Gull Wing
Actuator Height off PCB, Vertical:
2.50mm
Operating Temperature:
-25°C ~ 85°C
Actuator Orientation:
Top Actuated
Mechanical Life:
30,000 Cycles
REACH Status:
REACH Unaffected
edacadModel:
TL3200AF160RGQ Models
edacadModelUrl:
/en/models/4029374
Illumination Type, Color:
LED, Green/Red
Outline:
6.80mm x 4.50mm
Package:
Tape & Reel (TR)
Switch Function:
Off-Mom
Actuator Length, Right Angle:
-
Moisture Sensitivity Level (MSL):
2 (1 Year)
Circuit:
SPST-NO
Contact Rating @ Voltage:
0.05A @ 12VDC
standardLeadTime:
12 Weeks
Ingress Protection:
-
Features:
-
Mounting Type:
Surface Mount
Series:
TL3200
Switch Travel:
0.25mm
Actuator Type:
Rectangular Button
Illumination:
Illuminated
Illumination Voltage (Nominal):
2.3 VDC
Actuator Material:
Liquid Crystal Polymer (LCP)
Base Product Number:
TL3200
ECCN:
EAR99
Checking for live stock

This is manufactured by E-Switch. The manufacturer part number is TL3200AF160RGQ. It has a 160gf of operating force. It is assigned with possible HTSUS value of 8536.50.9031. The product is rohs3 compliant. Moreover, it has gull wing terminal style. Features 2.50mm actuator vertical height off PCB. The product has -25°c ~ 85°c operating temperature range. The actuator is adjusted at top actuated. The product also provide mechanical stability with 30,000 cycles. In addition, it is reach unaffected. It is supplied with led, green/red illumination. The given outline of the product is 6.80mm x 4.50mm. It is shipped in tape & reel (tr) package . It is designed as a off-mom switching function. Its typical moisture sensitivity level is 2 (1 year). It has an integral spst-no circuit. The given contact rating of the product and its voltage includes 0.05a @ 12vdc. It has a long 12 weeks standard lead time. The product is available in surface mount configuration. The product tl3200, is a highly preferred choice for users. The product has a switching travel of 0.25mm. The product carries rectangular button actuator. Is this product illuminated? illuminated. The nominal illumination voltage of the product is 2.3 vdc. The actuator is designed from sturdy liquid crystal polymer (lcp) material. Moreover, it corresponds to tl3200, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
E-Switch RoHS 3 Cert(Environmental Information)
pdf icon
TL3200 Series Datasheet(Datasheets)
pdf icon
TL3200AF160RGQ Drawing(Product Drawings)
